im old ,i know things ..lol



so this is fine and won't blow out head gaskets? Sweet! I'll put the mod in tomorrow.



so it works, awesome!
same deal for the r6 wheeliest?...shouldn't blow gaskets etc...



yep ...



it prolly is the same... im not 100% sure but it has the same reed valve set up.



Finally some closure!

Everybody's doin it, you do it too!


Thanks for lookin into it Wheeliest, you took all the guessing out



yea he just didn't find what he thought he would...lol



also i know, is johnnyp and i have seen issues from this... mainly it pushed out valve cover seal, but did not damage it.



it's real easy on the R6. i did it a few weeks ago, and its been fine. and actually does seem to have more low end torque.

if you need, i can try to get some pics of it....



no johnny p made a nipple that went directly in to the valve cover not the kleen air ports......



do it !! would be appreiated even though i get the idea , but i'd just like to see it



no johnnyp runs a hose arround the bike back to the air box.



k, i'll will get them up as soon as i can......



your just arguing now if he just ran it around the air box then how did he blow a valve cover gasket from doing this mod ?

he may have it that way now but he made his own port in to the valve cover and that blew out the gasket

you your self proved that the kleen air mod doesn't blow gaskets

as a matter of fact if the bike is at a steady rpm with the mod done it could possibly stop a gasket from leaking until you turned the bike off because the exhaust creates a vaccum in the crank case



JohnnyP vbmenu_register("postmenu_2088030", true);
Registered User




Join Date: Jun 2004
Location: Toronto
Age: 25
Bike: 03 R6, 03 636, 04 CRF50/106
Gender: Male
Posts: 1,697



Re: 636 Crankcase Vent Solutions
This is really starting to **** me off Just put a new very low milage motor in and I got oil sprayed all over me on the highway!

I used to have my crankcase breather blocked off and had a hose comming off the valve cover wraped around the motor once, then routed up to the front of the bike with a little filter on the end. On my old motor this worked fine, only on the street (high RPM) it would **** a little oil here and there....

So I drop in the new motor keeping the breather the same but changed to a catch can instead of a filter on the end, and after 5 min on the highway and a little wheelie Im covered in oil I really wanted to ride so I rushed back to the shop power washed the bike and hooked up my crankcase breather to my valve cover, now the ****in bastard is leakin oil through my stator cover(where the wires come out) and it blew the o-ring in my manual cam chain tensioner out.....I KNEW THAT WAS GOING TO BE A BAD IDEA

I think my only option now is to put it back to stock and burn all the oil and try my best not to hydro lock the motor......

I dont understand how these fixes are working for some people and not for others, even between my 2 motors the outcome was dufferent



get any yet?



not yet, sorry.....

been riding, and havent needed to take the take off. i'll try tomorrow, but no promises.



just wonderin, when you got the mod all hooked up, did you just disconnect the AIS or did you leave it there?



AIS? the intake? i had all of that taken out anyway. cause i had it streetfighter for a while...

got some pics, i'll get them up today.

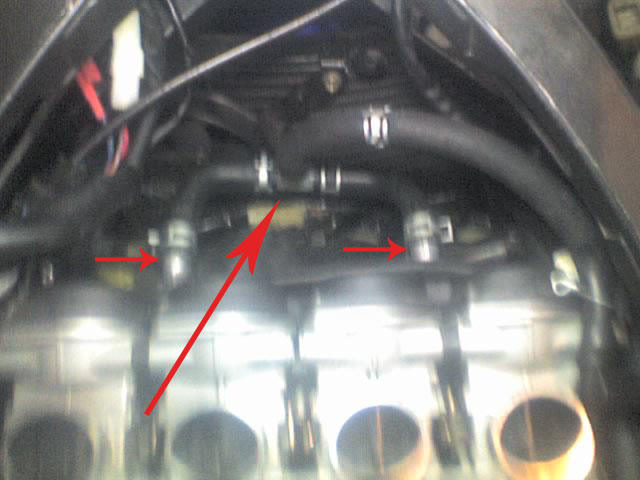

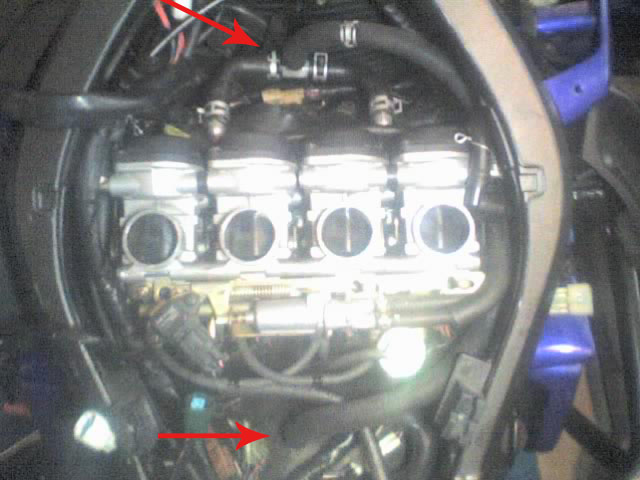

here ya go...sorry for the shitty cell phone pics, its the only camera i could get ahold of.

anyway, the red arrows show where the hoses connect.

the "T" just replaces the air valve, i re-used the L-shaped hoses that attach to the vavle cover. just un hook the plug for the air valve and zip tie it out of the way,

ran the large hose back to the crank case vent. just tucked the hose between the throttle bodies and frame.

it is really easy, hope it helps...
