05 ninja 636 wiring question!

My bike currently won't illuminate turn signals and I believe it's due to a plug not being plugged into anything. Can someone tell me what I need to purchase to plug into this. Bike was purchased wrecked and started and ran but never tested turn signals etc.

Name:  1A43FCE9-AA80-4C4E-ADAB-02F735836994-6975-0000077E63AE956F_zps430e9707.jpg
Views: 87
Size:  43.1 KB

Name:  F0338EC8-3AEA-4D88-9A23-4A41D5566DD3-6975-0000077E7098F889_zps7d250c43.jpg
Views: 120
Size:  39.1 KB

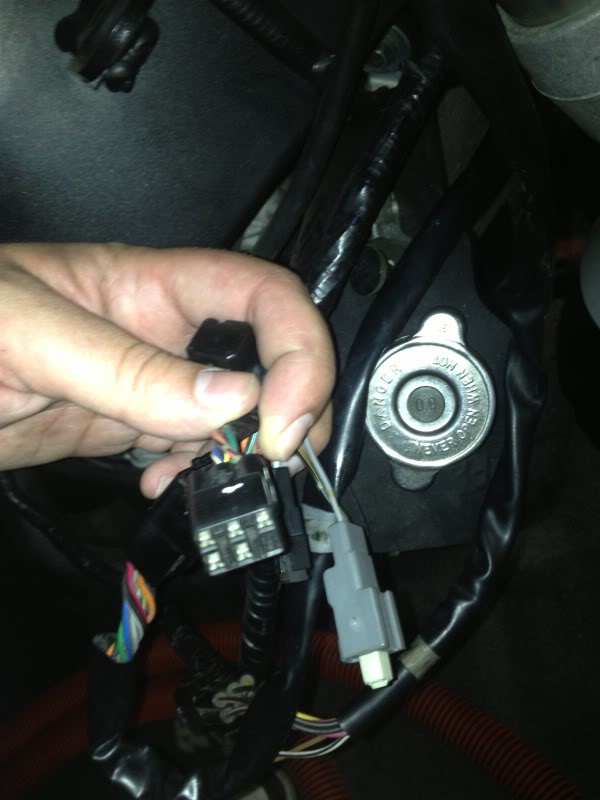

Name:  883B2B56-0F88-49B3-9DA1-C608D36FCE2F-6975-0000077E774A468A_zpsf47f6ef4.jpg
Views: 107
Size:  46.5 KB

Name:  A1BB2E1A-890E-4428-9E1F-91267D59AC13-6975-0000077E84FCF836_zps86897f50.jpg
Views: 113
Size:  77.7 KB

Name:  390CD39C-0526-47B3-B429-5EBAD557B284-6975-0000077E97993C9D_zps30d7061f.jpg
Views: 99
Size:  90.4 KB




Thanks

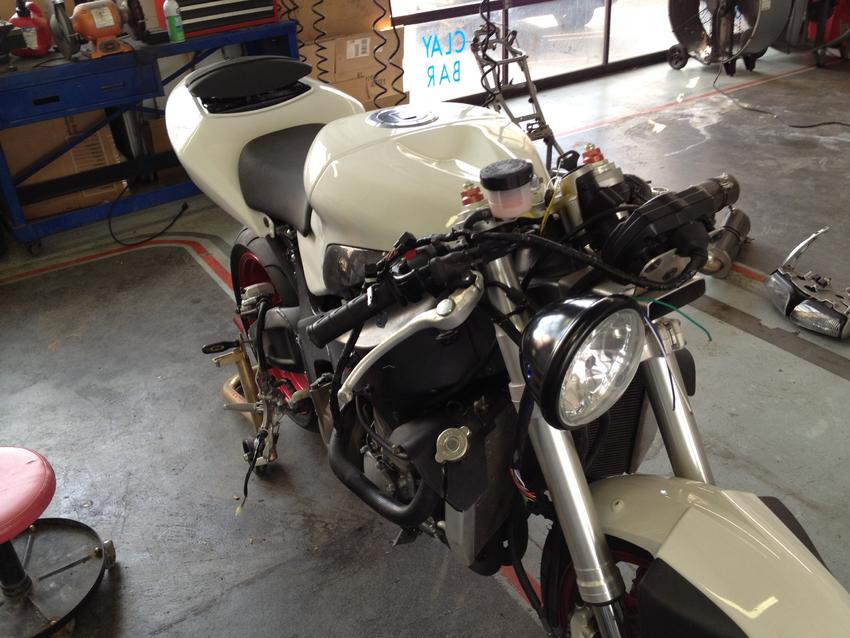

Attached Thumbnails Click image for larger version

Name:	image.jpg
Views:	25
Size:	83.5 KB
ID:	246705
Old Aug 18, 2013 | 04:08 AM
  #2
Sparky88's Avatar
The Bike Butcher

Joined: May 2013
Posts: 111
From: Gosford nsw Australia
Sparky88 is a decent person
Re: 05 ninja 636 wiring question!

Not to be a dick, but go through your basics. Check your fuses, check that you have a good earth, check that you have power going to the indicators and if your running LEDS make sure they are connected with correct polarity.
Old Aug 18, 2013 | 04:10 AM
  #3
Sparky88's Avatar
The Bike Butcher

Joined: May 2013
Posts: 111
From: Gosford nsw Australia
Sparky88 is a decent person
Re: 05 ninja 636 wiring question!

Once you've been through that you can pull out a test lamp or multi metre to do some more advanced diagnostics
Old Aug 26, 2013 | 08:41 AM
  #4
DARKS1D3's Avatar
Registered User

Joined: Oct 2012
Posts: 167
From: fresno
DARKS1D3 is a decent person
Re: 05 ninja 636 wiring question!

Originally Posted by Sparky88
Not to be a dick, but go through your basics. Check your fuses, check that you have a good earth, check that you have power going to the indicators and if your running LEDS make sure they are connected with correct polarity.

dick
