F4i idle screw relocation
06-20-2005, 07:41 AM
#1
Registered User
Thread Starter
Join Date: Jun 2004
Location: 808
Posts: 141
F4i idle screw relocation
I'm relocating the idle screw from lower left side to upper left side, as all stunters do.
My question is, where do I rescrew in to?
A friend was trying to explain it to me, but I just didn't get it. pics would help if you can...
My question is, where do I rescrew in to?
A friend was trying to explain it to me, but I just didn't get it. pics would help if you can...
06-21-2005, 01:35 PM
#5
Registered User
Join Date: Jun 2004
Location: south central MA
Age: 39
Posts: 3,113
Re: F4i idle screw relocation
where is it on an F4i?? i have an f4 and its right next to my right knee and i think thats perfect. i wouldnt like it on my left side because i pull my clutch in while im adjusting it.
06-21-2005, 01:41 PM
#6
Registered User
Join Date: Oct 2003
Location: OOOOmaha, NE
Age: 39
Posts: 1,417
Re: F4i idle screw relocation
Originally Posted by f4stunna
where is it on an F4i?? i have an f4 and its right next to my right knee and i think thats perfect. i wouldnt like it on my left side because i pull my clutch in while im adjusting it.
06-21-2005, 01:54 PM
#8
I Love To Post!
Join Date: Oct 2002
Location: Chelsea MI
Posts: 5,272
Re: F4i idle screw relocation
Originally Posted by Schwartz

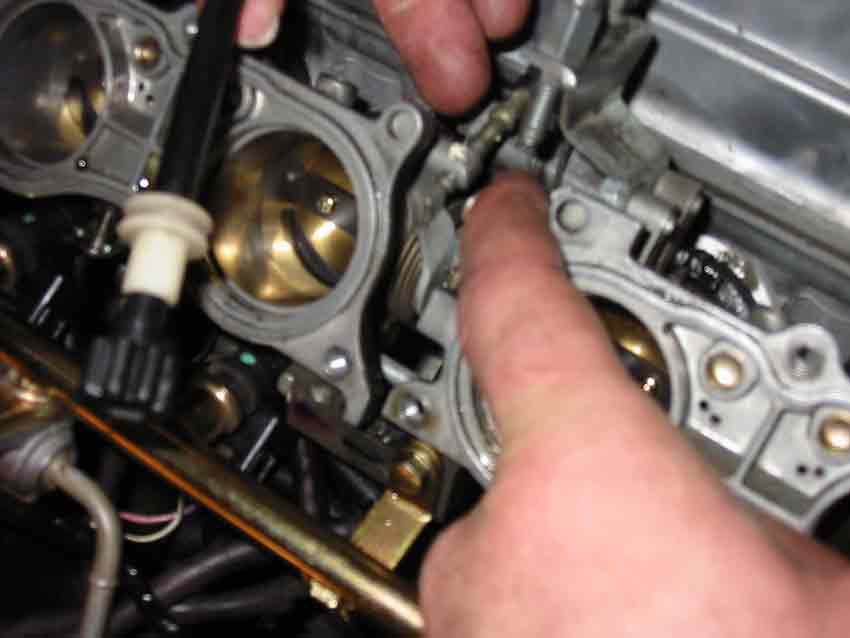

Here are a couple of pics. Very simple thing to do. You should leave the stock idle cable in place.

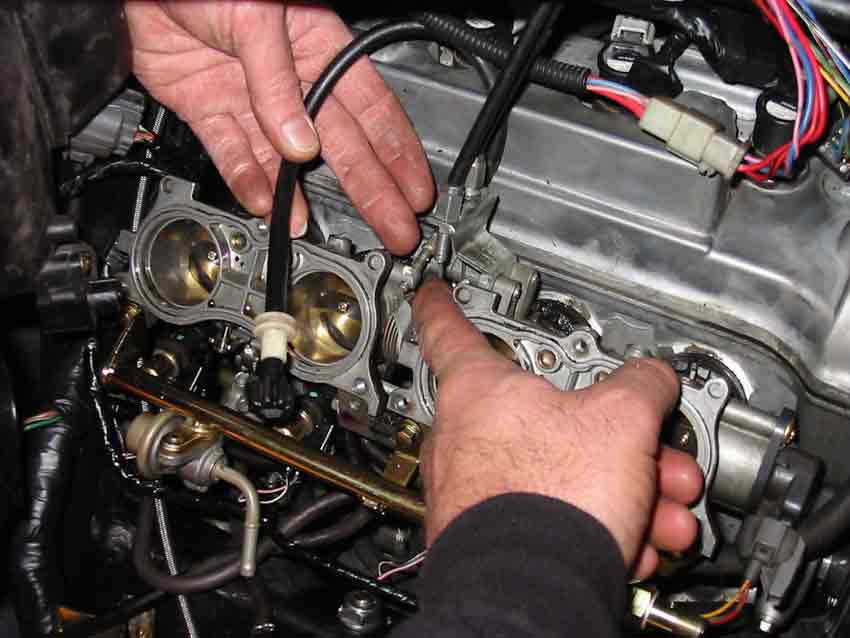

In the second picture I am pointing to where I put My new cable. You have to back out the stock set screw and simple screw in the replacment. I recomend you have the spring and washer that comes with the 900 cable.
06-21-2005, 02:43 PM
#9
Registered User
Join Date: Oct 2004
Location: Citrus Heights, ca
Age: 53
Posts: 147
Re: F4i idle screw relocation
Originally Posted by JonnyJ
.... or u could just pop it in neutral. Its on the lower left on the f4i. I don't have fairings on mine yet so its still easily accessible. Do the fairings block it or what? Why do you relocate it?
06-21-2005, 03:11 PM
#12
Two Tone
Join Date: Apr 2004
Location: SOCAL
Age: 37
Posts: 3,044
Re: F4i idle screw relocation
Originally Posted by Schwartz
Not true.
thats the point if its long it screws in further so the idol goes up super high.
It is the 900rr cable right? i put one on my bike but it wasnt long enough to come out by the neck of my bike. I had to run it down and out the side by my radiator.
06-21-2005, 03:59 PM
#13
I Love To Post!
Join Date: Oct 2002
Location: Chelsea MI
Posts: 5,272
Re: F4i idle screw relocation
Originally Posted by teamclc
thats the point if its long it screws in further so the idol goes up super high.
It is the 900rr cable right? i put one on my bike but it wasnt long enough to come out by the neck of my bike. I had to run it down and out the side by my radiator.
It is the 900rr cable right? i put one on my bike but it wasnt long enough to come out by the neck of my bike. I had to run it down and out the side by my radiator.

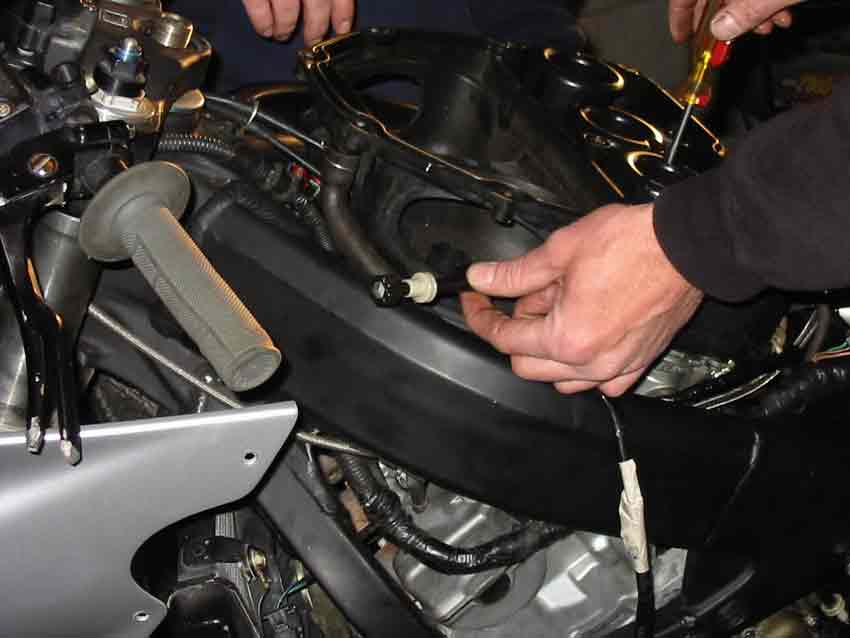

Not sure what year it is but one of the years is longer then the other. I put a 96 900 RR cable and you can see in the pics where it came out.
06-21-2005, 04:32 PM
#15
I Love To Post!
Join Date: Oct 2002
Location: Chelsea MI
Posts: 5,272
Re: F4i idle screw relocation
Originally Posted by MikeM
Guys, just curious - whats the point of this mod? I never have any trouble adjusting the idle on my f4i. Is this for more convienence?
06-21-2005, 05:49 PM
#16
www.sicriders.com
Join Date: Mar 2003
Location: San Diego, CA
Posts: 784
Re: F4i idle screw relocation
Originally Posted by Schwartz
You can get the idle to the desired RPM and only have to twist the cable like 1/4 to 1/2 A Turn and the idle is more sufficant then when you use the stock Idle up. This is for the f4i's. I am sure the f4's are fine stock. The stock setup doens't even open the throttel bodies it only fatten's up the idle simalar to a choke.
06-21-2005, 07:59 PM
#17
bp chaser
Join Date: Oct 2002
Location: LI, NY and I drive in Australia
Age: 47
Posts: 85,333
Re: F4i idle screw relocation
Originally Posted by Schwartz
You can get the idle to the desired RPM and only have to twist the cable like 1/4 to 1/2 A Turn and the idle is more sufficant then when you use the stock Idle up. This is for the f4i's. I am sure the f4's are fine stock. The stock setup doens't even open the throttel bodies it only fatten's up the idle simalar to a choke.
Originally Posted by SIC GSXR
This is important! The stock 'idle' adjuster is not really idle, it is a fuel flap adjustment. It will only allow you to 'adjust' a little higher than stock. You MUST leave the stock on attached or the bike will not run. Just add a new f4i adjuster from the dealer ($35 or so) and you are good to go...it will reach to the right side of the tank near the neck.
06-21-2005, 08:05 PM
#18
www.mxdcages.com
Join Date: Apr 2004
Location: CA
Age: 55
Posts: 1,876
Re: F4i idle screw relocation
ive been doing just fine with mine stock but i only use 3500 max idle for sitdown no handers everything else like 3000 but i was thinking couldn't you just switch the set screw in the middle to the fuel flap ajd.and the wire **** chingadera to the center and not need a extra one?just a thought
06-21-2005, 10:29 PM
#19
I Love To Post!
Join Date: Oct 2002
Location: Chelsea MI
Posts: 5,272
Re: F4i idle screw relocation
Originally Posted by got circles?
ive been doing just fine with mine stock but i only use 3500 max idle for sitdown no handers everything else like 3000 but i was thinking couldn't you just switch the set screw in the middle to the fuel flap ajd.and the wire **** chingadera to the center and not need a extra one?just a thought
Dude did you read the post???
Gotta leave the stock one in place.
06-22-2005, 01:32 AM
#20
I Enjoy Posting At StuntLife!
Join Date: Oct 2003
Location: BACK IN THE KCMO!!!!
Age: 37
Posts: 1,935
Re: F4i idle screw relocation
yeah, plus you never know when you might want to adjust your baseline idle even if you could take out the stock one. I always thought I was fine with the stock cable til I put on the 900rr one, and now theres no way I would go back to only the stock one. The cable was only $18 at my dealer......plus you can turn the idle way up for fun stuff like 45mph no-handers...........
