Stunt Bike Forum

636 rear wheel swap

Thread Tools

Search this Thread

Old Dec 14, 2007 | 10:11 AM
Share
  #21
JohnnyP's Avatar
JohnnyP
Registered User

Joined: Jun 2004
Posts: 3,289
From: Toronto
JohnnyP is a decent person
Re: 636 rear wheel swap
Originally Posted by old man roger
well i would think if the wheel is 13 mm different it would be 6.5 on each side ...
It would be if they made it 13mm narrower from both ends, but its not. Just the right side is pushed in 13mm, both the bearing and rotor mounting surface are 13mm in to the left from the 03/04.....
Reply
Old Dec 14, 2007 | 10:14 AM
Share
  #22
old man roger's Avatar
old man roger
also known as OMR

Joined: Jul 2006
Posts: 79,288
From: OMR INDUSTRIES in west palm beach florida
old man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for rep
Re: 636 rear wheel swap
Originally Posted by JohnnyP
It would be if they made it 13mm narrower from both ends, but its not. Just the right side is pushed in 13mm, both the bearing and rotor mounting surface are 13mm in to the left from the 03/04.....
hhmm ok i get it now...so the center of the rim relative to the sprocket remains the same..
Reply
Old Dec 14, 2007 | 10:19 AM
Share
  #23
JohnnyP's Avatar
JohnnyP
Registered User

Joined: Jun 2004
Posts: 3,289
From: Toronto
JohnnyP is a decent person
Re: 636 rear wheel swap
Originally Posted by old man roger
hhmm ok i get it now...so the center of the rim relative to the sprocket remains the same..
correct only the right side was moved in, relative to the sprocket
Reply
Old Dec 14, 2007 | 11:58 AM
Share
  #24
GSXR Carlos's Avatar
GSXR Carlos
Professional Work Avoider

Joined: Feb 2007
Posts: 2,151
From: North West, UK
GSXR Carlos will become famous soon enoughGSXR Carlos will become famous soon enough
Re: 636 rear wheel swap
Originally Posted by JohnnyP
only 05-08 will fit, the older 03/04 rims are too wide in the middle and wont fit....
Bugger, not what i wanted to hear, will any ZX10 wheels fit?
Reply
Old Dec 14, 2007 | 12:06 PM
Share
  #25
JohnnyP's Avatar
JohnnyP
Registered User

Joined: Jun 2004
Posts: 3,289
From: Toronto
JohnnyP is a decent person
Re: 636 rear wheel swap
Originally Posted by GSXR Carlos
Bugger, not what i wanted to hear, will any ZX10 wheels fit?
ZX10 wheels should fit but its a 6" rim not a 5.5"........I never tried but I did powdercoat one and it looked exactly the same besides it being 6" wide not 5.5"....
Reply
Old Dec 14, 2007 | 12:17 PM
Share
  #26
GSXR Carlos's Avatar
GSXR Carlos
Professional Work Avoider

Joined: Feb 2007
Posts: 2,151
From: North West, UK
GSXR Carlos will become famous soon enoughGSXR Carlos will become famous soon enough
Re: 636 rear wheel swap
would a 180 section tyre run on a 6" rim ok? or does it have to be a 190 tyre?
Reply
Old Dec 14, 2007 | 12:21 PM
Share
  #27
JohnnyP's Avatar
JohnnyP
Registered User

Joined: Jun 2004
Posts: 3,289
From: Toronto
JohnnyP is a decent person
Re: 636 rear wheel swap
Originally Posted by GSXR Carlos
would a 180 section tyre run on a 6" rim ok? or does it have to be a 190 tyre?
You should run a 190 or bigger on a 6", some 180's might fit but they wont be proper. The profile will be way flattened out Id think, Im not sure thou cause Ive only run 180s on 5.5" and 190 on 6"
Reply
Old Dec 14, 2007 | 12:34 PM
Share
  #28
GSXR Carlos's Avatar
GSXR Carlos
Professional Work Avoider

Joined: Feb 2007
Posts: 2,151
From: North West, UK
GSXR Carlos will become famous soon enoughGSXR Carlos will become famous soon enough
Re: 636 rear wheel swap
Yeah, that's what i was thinking, need a 5.5" rim to keep tyre costs down.

Thanks for the advise though, no wonder the newer 636 wheels are so expensive
Reply
Old Dec 14, 2007 | 12:38 PM
Share
  #29
LynchMob's Avatar
LynchMob
Thread Starter
Registered User

Joined: Dec 2006
Posts: 523
From: NY
LynchMob is a decent person
Re: 636 rear wheel swap
i got a set of 05/06 636 rims and swingarm im selling if anyone is interested
Reply
Old Dec 16, 2007 | 10:23 PM
Share
  #30
Suicidl's Avatar
Suicidl
WWW.Sickinnovations.com

Joined: May 2004
Posts: 18,216
From: Usa
Suicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to behold
Re: 636 rear wheel swap
03-04 swingarm is off. all i need is to swap the one thing on the swingarm because i am using the 03-04 shock correct
Reply
Old Dec 17, 2007 | 01:05 AM
Share
  #31
KoleDSF's Avatar
KoleDSF
Registered User

Joined: Feb 2007
Posts: 274
From: Denver
KoleDSF is a decent person
Re: 636 rear wheel swap
Originally Posted by LynchMob
i got a set of 05/06 636 rims and swingarm im selling if anyone is interested

im interested.. Price?
Reply
Old Dec 17, 2007 | 01:06 AM
Share
  #32
Suicidl's Avatar
Suicidl
WWW.Sickinnovations.com

Joined: May 2004
Posts: 18,216
From: Usa
Suicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to behold
Re: 636 rear wheel swap
Originally Posted by LynchMob
i got a set of 05/06 636 rims and swingarm im selling if anyone is interested
i need the 05-06 axle
Reply
Old Dec 17, 2007 | 01:16 AM
Share
  #33
Herb's Avatar
Herb
Registered User

Joined: Sep 2003
Posts: 747
From: Stratford,CT
Herb is an unknown quantity at this point
Re: 636 rear wheel swap
How is the 520 setup on the 636s working out. Has anyone been doing 525 conversions? I couldnt imaging the 520 holding up for very long.

Not trying to thread jack. Just seems like a good place to ask.
Reply
Old Dec 17, 2007 | 04:06 AM
Share
  #34
Suicidl's Avatar
Suicidl
WWW.Sickinnovations.com

Joined: May 2004
Posts: 18,216
From: Usa
Suicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to behold
Re: 636 rear wheel swap
Originally Posted by Herb
How is the 520 setup on the 636s working out. Has anyone been doing 525 conversions? I couldnt imaging the 520 holding up for very long.

Not trying to thread jack. Just seems like a good place to ask.

but i ran 520 on 929/954's before and never had a problem
Reply
Old Dec 17, 2007 | 04:22 AM
Share
  #35
Suicidl's Avatar
Suicidl
WWW.Sickinnovations.com

Joined: May 2004
Posts: 18,216
From: Usa
Suicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to behold
Re: 636 rear wheel swap
it was a easy swap to do thanks johnnyp for the instuctions

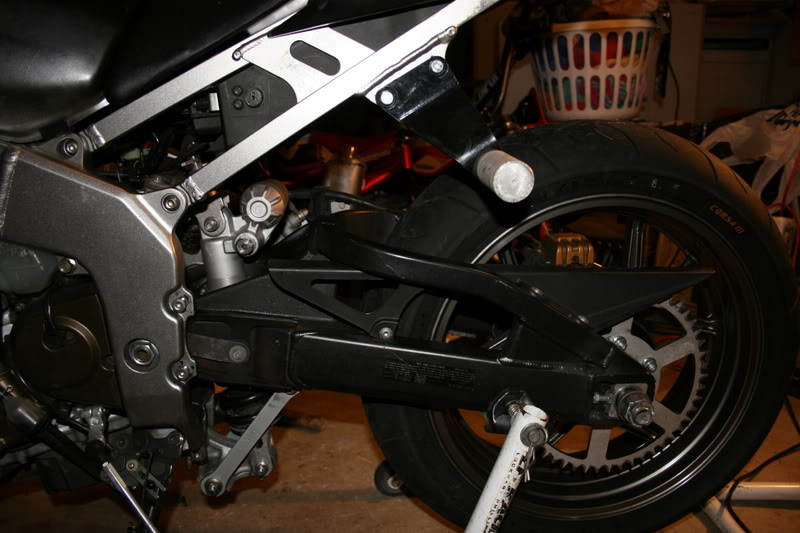

Name: F4iParts002.jpg Views: 356 Size: 75.4 KB

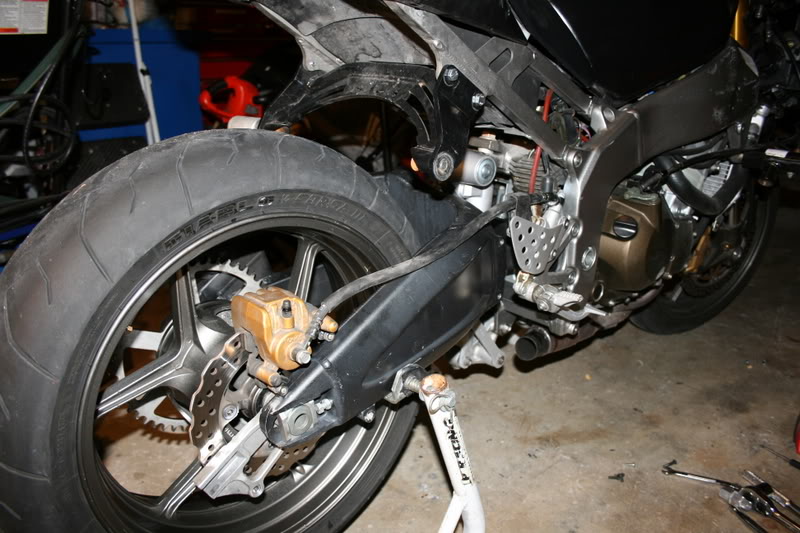

Name: F4iParts001.jpg Views: 359 Size: 95.0 KB
Reply
Old Dec 17, 2007 | 04:40 AM
Share
  #36
old man roger's Avatar
old man roger
also known as OMR

Joined: Jul 2006
Posts: 79,288
From: OMR INDUSTRIES in west palm beach florida
old man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for rep
Re: 636 rear wheel swap
how the hell did you get the axle and brake mount so quick
Reply
Old Dec 17, 2007 | 04:57 AM
Share
  #37
tigroo's Avatar
tigroo
scrape it son!

Joined: Dec 2003
Posts: 2,873
From: on the seat...
tigroo is a decent person
Re: 636 rear wheel swap
Originally Posted by suicidl
it was a easy swap to do thanks johnnyp for the instuctions


looks like ****'s gonna be sick *****!!:YEAH
Reply
Old Dec 17, 2007 | 05:04 AM
Share
  #38
Suicidl's Avatar
Suicidl
WWW.Sickinnovations.com

Joined: May 2004
Posts: 18,216
From: Usa
Suicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to beholdSuicidl is a splendid one to behold
Re: 636 rear wheel swap
Originally Posted by old man roger
how the hell did you get the axle and brake mount so quick
Haha i just used the 03-04 axle with some washers and the 03-04 brake bracket to get it all aligned

Originally Posted by tigroo
looks like ****'s gonna be sick *****!!:YEAH
thanks
Reply
Old Dec 17, 2007 | 05:05 AM
Share
  #39
old man roger's Avatar
old man roger
also known as OMR

Joined: Jul 2006
Posts: 79,288
From: OMR INDUSTRIES in west palm beach florida
old man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for repold man roger User spends way too much time asking for rep
Re: 636 rear wheel swap
ya i noticed it was long after i made the post...
Reply
Old Dec 17, 2007 | 12:17 PM
Share
  #40
KoleDSF's Avatar
KoleDSF
Registered User

Joined: Feb 2007
Posts: 274
From: Denver
KoleDSF is a decent person
Re: 636 rear wheel swap
ok so i have heard ppl say putin the 05 swingarm on the 04 ***** with your bp?? I dunno if its true i dont see why it would but i was jw from you guys who have rode with it on???
Reply
