i got 1 for anybody who has a wiring shematic on a gsxr 04 i got a on off starter switch it is off the exact same type of bike but the plug connectors are not the same ??? my bike wiring harness has a plug connector with 2 extra wires on the side also if you start the bike the fuel injection light comes on why?? is it safe to ride like this??



put it in dealer mode( there is a white plug behind the battery, and you will most likely have to slide the tail back some to expose it, it is kinda buried, mine had a little black rubber booty on it) to put it in dealer mode find the plug and use a paper clip to short out the two prongs on the side of the plug (these prongs will be directly over one another on the outside of the plug)

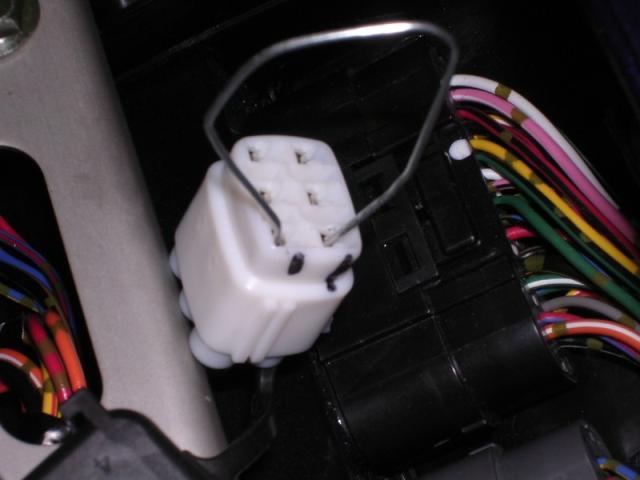

Check the pic - it will look something like this

turn your key on and a code will come up on the screen where the FI light originally was

here are the codes,
C14 - THROTTLE POSITION SENSOR
C15 - ENGINE COOLANT TEMPERATURE SENSOR
C21 - INTAKE AIR TEMPERATURE SENSOR
C22 - ATMOSPHERIC PRESSURE SENSOR
C23 - TIPOVER SENSOR
C24 - IGNITION SIGNAL #1
C25 - IGNITION SIGNAL #2
C26 - IGNITION SIGNAL #3
C27 - IGNITION SIGNAL #4
C28 - SECONDARY THROTTLE VALVE ACTUATOR
C29 - SECONDARY THROTTLE POSITION SENSOR
C30 - SECONDARY THROTTLE CONTROL UNIT
C31 - GEAR POSITION SENSOR
C32 - INJECTOR SIGNAL #1
C33 - INJECTOR SIGNAL #2
C34 - INJECTOR SIGNAL #3
C35 - INJECTOR SIGNAL #4
C41 - FUEL PUMP CONTROL SYSTEM
C42 - IGNITION SWITCH SIGNAL
C46 - EXHAUST CONTROL VALVE ACTUATOR (1000 ONLY)




:YEAH :YEAH :YEAH :YEAH :YEAH :YEAH



Dude You Rule Thanks I Also Found Out That This One Plug Connector Is The Only Difference Between An 04 & 05 Harness Sucks Because People On Ebay Think They Are The Same From 04 To 05 Not True



glad i could help
