R6 sub-frame problem

it's an 02 R6 and the sub-frame bolts(especially the lower ones)keep coming loose I'm not even tapping the tail, just doing slow standups. I have to stop and tighten them after about a half hour of riding...any solutions outthere? post up...thanks
Old Feb 5, 2005 | 10:16 PM
  #2
catach42's Avatar
Registered User

Joined: Jan 2004
Posts: 1,430
From: Boston, MA
catach42 is an unknown quantity at this point
Re: R6 sub-frame problem

get 4 subframe bolts off of an f4i. they are longer and have nuts on the back so they stay tight much longer. i broke three of the stock bolts becuz they kept comin lose then i would hit the bar and they would snap, the f4i ones work mint
Old Feb 5, 2005 | 10:19 PM
  #3
Z-UNIT's Avatar
Registered User

Joined: Aug 2004
Posts: 6,124
From: wherever willie is
Z-UNIT is an unknown quantity at this point
Re: R6 sub-frame problem

yah my f4i ones u ****
Old Feb 5, 2005 | 10:51 PM
  #4
atnuts's Avatar
Thread Starter
Registered User

Joined: Oct 2002
Posts: 3,995
From: joi-zee
atnuts is an unknown quantity at this point
Re: R6 sub-frame problem

Originally Posted by catach42
get 4 subframe bolts off of an f4i. they are longer and have nuts on the back so they stay tight much longer. i broke three of the stock bolts becuz they kept comin lose then i would hit the bar and they would snap, the f4i ones work mint
will the nuts fit on the lower bolts? the way the frame is shaped the nuts won't fully tighten from the inside...at least not the nuts/bolts I was using.
Old Feb 6, 2005 | 10:53 AM
  #5
catach42's Avatar
Registered User

Joined: Jan 2004
Posts: 1,430
From: Boston, MA
catach42 is an unknown quantity at this point
Re: R6 sub-frame problem

Originally Posted by r6_kidd
will the nuts fit on the lower bolts? the way the frame is shaped the nuts won't fully tighten from the inside...at least not the nuts/bolts I was using.
im not 100% sure becuz i only have 2 f4i bolts and 2 random home depot bolts in right now. if the f4i ones wont fit then just get any old bolt, put it in there and crank it tight with a nut on the back, my lower ones almost never loosen up anymore and i only tighten the top ones every few ride and i use my bar ALOT
Old Feb 9, 2005 | 05:19 PM
  #6
sheetone's Avatar
Registered User

Joined: Aug 2004
Posts: 228
From: Apple Valley, MN
sheetone is an unknown quantity at this point
Re: R6 sub-frame problem

maybe try some blue loctite?
Old Feb 9, 2005 | 05:54 PM
  #7
jmurrayR6's Avatar
Registered User

Joined: Aug 2004
Posts: 97
From: Medford, Oregon
jmurrayR6 is an unknown quantity at this point
Re: R6 sub-frame problem

lock tite bro
Old Feb 10, 2005 | 09:46 AM
  #8
Nick StuntMetal's Avatar
Registered User

Joined: Jan 2004
Posts: 728
From: Eaton,Ohio
Nick StuntMetal is an unknown quantity at this point
Re: R6 sub-frame problem

get longer bolt's and put a nut on the end.

works for me so far.

im sure locktite is good too.
Old Feb 10, 2005 | 06:51 PM
  #9
Mr Weber's Avatar
Registered User

Joined: Dec 2003
Posts: 970
From: WISCOMPTON!!
Mr Weber is an unknown quantity at this point
Re: R6 sub-frame problem

Originally Posted by Yamaha R6
get longer bolt's and put a nut on the end.

works for me so far.

im sure locktite is good too.

True dat!! Unless you want to waste your money at the honda shop just so u can say u have F4i bolts!!!
Old Feb 10, 2005 | 11:04 PM
  #10
atnuts's Avatar
Thread Starter
Registered User

Joined: Oct 2002
Posts: 3,995
From: joi-zee
atnuts is an unknown quantity at this point
Re: R6 sub-frame problem

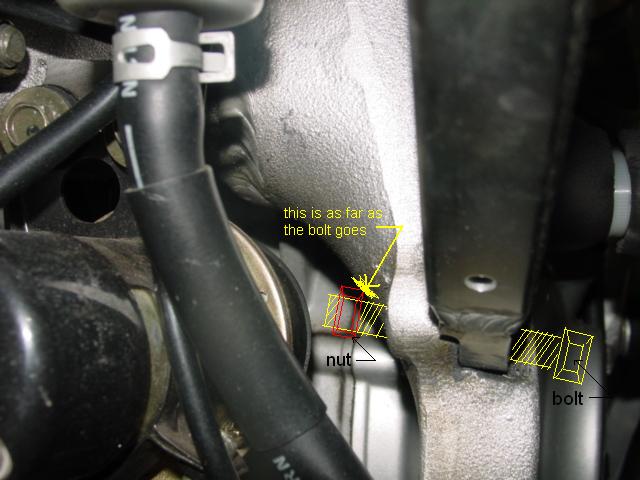

this is why I posted this question...weird frame angle I'm just thinking the nut should be flush against the frame on the inside. guess it doesn't matter. just picked up some longer bolts and nuts and gonna tigh it as far as it goes. check out the pic...guess everyone's doing the same???
Attached Thumbnails Click image for larger version

Name:	R6_subframe_diag.JPG
Views:	17
Size:	42.2 KB
ID:	122418
