I picked up an 06 636 and want to switch it to db bars, glad you posted all this up, Not sure if im going to need a new triple or not



U need a 30 & a 32 inch line, dont use a splitter run the lines both out of the master, u get more even line pressure when u dont use a splitter



u need a new triple with 05-06



you sure on the line size? i mean i can just measure too to make sure

how would i run both of of my master? a double banjo on my master instead of down at the right caliper?



yes, use the double banjo on master, single banjos on each calipers.
Positive on line size, hai sent me a 28 and a 30, thats ok if u want to set it up with a splitter, but i didn't want to do it like that, trust 30 & 32, ive done it twice already to get it perfect.



alright cool thanks man appreciate it

how long did it take for you to get it from hai?

and what is the thread size? how do i fugre that



about 2 days cause im in florida, size 1.25 all street bikes are, and u need two straight fittings and two 35 degree bend fittings, use the straight one's off the calipers and the bent ones at the master, get the russel lines, the goodridge lines fall apart they say



Those line sizes the same for the 06? While im on a buying spree might as well get it all done with



Do those D-bars clear the stay? Any pics at full lock?



Yes there's no difference

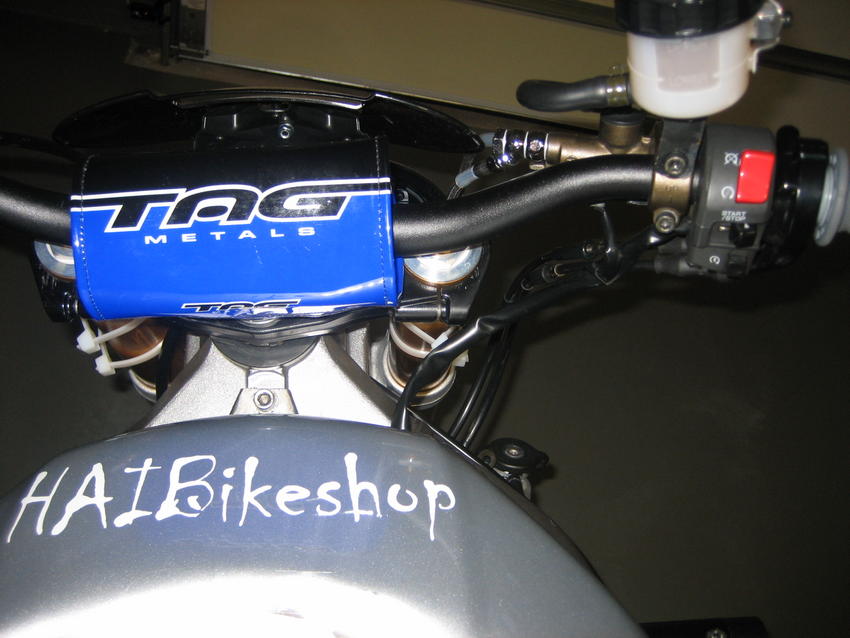

johnny they DO clear the stay, ill take pics check back in a min

and scandelous thanks man



+1 saved me alot of time being agrivated



they clear the stay so much, i dont think it would on a regular stay and regular screen but i have a short stay and cut screen
my hand is in the pic just for a reference as of how much room there is, its really ridiculous to how much clearence there is



That would clear my standard stay no problem, its only 1" longer then your stort stay...



oh well there ya go then lol, works perfect



If u did manage to get some bar clamps on that triple I wouldn't trust it. It's just too thin there.



because thats what came with the bars when i got them.. why waste money.. my front brake works perfectly.. stops me when i squeeze it.. what more do i need

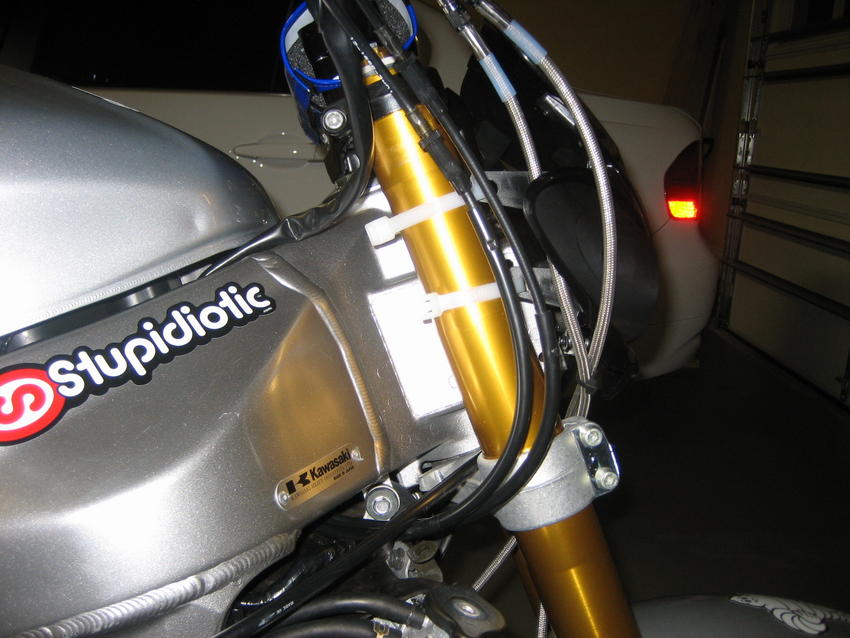

How i ran my cables works great no binding, everything is free



wow u still have your horn.. lol nice.. that front end setup is pimp as hell



ya horns still there but cant use it cause that control is zip tied under my seat out of the way, have to reach in to turn my light on.

Thanks pimpin!
