Share your tips for setting up a good stuntbike

Thread Tools

Search this Thread

Old Sep 18, 2004 | 12:11 AM
  #1
martino's Avatar
Thread Starter
wheres all the fat girls

Joined: Mar 2003
Posts: 1,442
From: Northern Va
martino is a decent person
Share your tips for setting up a good stuntbike

Post up what you've done to your stuntbike. Heres what I've done to mine.

-Motorcross footpegs from an XR80-
-PCV lines unhooked from airbox
-Engine fan wired on a switch
-Throttle housing secured. I ran a bolt through the housing and the handlebar
-Tips of clutch lever/brake lever cut off to not break the perch/master cyl
-shortened muffler packed with pink panther insulation for noise
-safety wired all bolts having to do with rear brake
-Oil Overfilled

-Bar set at 12 and angled not to plow
-Cage and or frame sliders hitting before engine case

-I removed the bolts that hold my radiator/oil cooler and replaced them with zip ties so they break before the radiator/oil cooler do.

-Mounting the clip ons under the top triple tree- allowing the forks to slide down an extra inch and a half to increase shock travel-I haven't dont this one yet.
Old Sep 18, 2004 | 08:07 AM
  #2
Jaket's Avatar
Registered User

Joined: Mar 2004
Posts: 699
From: North pole
Jaket is an unknown quantity at this point
Re: Share your tips for setting up a good stuntbike

changing fork position doesn't give you more suspension travel, if fork has 12cm, it has that always.

What it gives you is higher front, maybe easier to wheelie and less agressive front geometry which stabilises the front, less chance to tankslap.

JT
Old Sep 18, 2004 | 10:19 AM
  #3
Namelesswonder's Avatar
Registered User

Joined: Apr 2004
Posts: 129
From: West Palm Beach, Florida
Namelesswonder is an unknown quantity at this point
Re: Share your tips for setting up a good stuntbike

Originally Posted by martino
Post up what you've done to your stuntbike. Heres what I've done to mine.

-Motorcross footpegs from an XR80-
-PCV lines unhooked from airbox
-Engine fan wired on a switch
-Throttle housing secured. I ran a bolt through the housing and the handlebar
-Tips of clutch lever/brake lever cut off to not break the perch/master cyl
-shortened muffler packed with pink panther insulation for noise
-safety wired all bolts having to do with rear brake
-Oil Overfilled

-Bar set at 12 and angled not to plow
-Cage and or frame sliders hitting before engine case

-I removed the bolts that hold my radiator/oil cooler and replaced them with zip ties so they break before the radiator/oil cooler do.

-Mounting the clip ons under the top triple tree- allowing the forks to slide down an extra inch and a half to increase shock travel-I haven't dont this one yet.

Post some pics.
Old Sep 18, 2004 | 11:45 AM
  #4
DoodleF4i's Avatar
...

Joined: Oct 2003
Posts: 4,730
From: ......
DoodleF4i can only hope to improve
Re: Share your tips for setting up a good stuntbike

wanna know my set up?

*fairings removed due to many drops
*tail piece slightly smashed from high *** wheelie
*bicycle pegs with bigger hole drilled in the back mounted to the engine bolts with piece of PVC pipe jammed down the peg for crash protection
*oh and my right clip on is bent inwards slightly


...awesome stunt machine
Old Sep 18, 2004 | 04:31 PM
  #5
Lb3's Avatar
Lb3
Registered User

Joined: Nov 2002
Posts: 5,133
From: Dallas, Tx
Lb3 is an unknown quantity at this point
Re: Share your tips for setting up a good stuntbike

I use sprockets and cages cause I only want the best.
Old Sep 18, 2004 | 04:53 PM
  #6
SAMBO's Avatar
Registered User

Joined: Mar 2003
Posts: 5,394
From: TEXAS/MEXICO
SAMBO is an unknown quantity at this point
Re: Share your tips for setting up a good stuntbike

I use this special imported cream, OH WAIT! wrong thread.....
Old Sep 18, 2004 | 08:27 PM
  #7
bill parr's Avatar
I Enjoy Posting At StuntLife!

Joined: Dec 2002
Posts: 2,625
From: racine, wisconsin
bill parr is an unknown quantity at this point
Re: Share your tips for setting up a good stuntbike

how to set up a ghetto *** stunt bike


re-enforce the frame by welding 1/4 incdh thick aluminum behind the entire frame, fill in the little trianles in the main beams with 1/4 inch thick aluminum plate, beat the **** out of it and buy a new one (new to me) everyseason. lots of zip ties and a good tap and die set help. rhino liner the tank so you dont slide off during balanced spreaders. custom bungee cord seat holder, custom zip tie tail light mounts, cut stock pipe down 3 inches to avoid running that long bitch on the ground during 12's, a chain attatched to the triples and the key to hold it in during crashes, cut all the wiring you dont need, cap it off and tuck all the wireing under the tank(avoid searcing for that wire you ground down when you yard sailed it the night b4), rags around the leaking fork seals, cut brake and clutch lever down so you only use 2 fingers on them. turn fuel petcock so you can still get to it after you re-enforce the frame, 1 inch tall spacers under the tank mounts(after you dent the **** out of the tank it bends in the middle and knocks your air box off constantly...)
Old Sep 20, 2004 | 04:09 AM
  #8
Jaket's Avatar
Registered User

Joined: Mar 2004
Posts: 699
From: North pole
Jaket is an unknown quantity at this point
Re: Share your tips for setting up a good stuntbike

"re-enforce the frame by welding 1/4 incdh thick aluminum behind the entire frame,"

pics? sounds pretty agressive for 900RR?

Jaket
Old Sep 20, 2004 | 11:26 AM
  #9
bill parr's Avatar
I Enjoy Posting At StuntLife!

Joined: Dec 2002
Posts: 2,625
From: racine, wisconsin
bill parr is an unknown quantity at this point
Re: Share your tips for setting up a good stuntbike

Originally Posted by Jaket
"re-enforce the frame by welding 1/4 incdh thick aluminum behind the entire frame,"

pics? sounds pretty agressive for 900RR?

Jaket

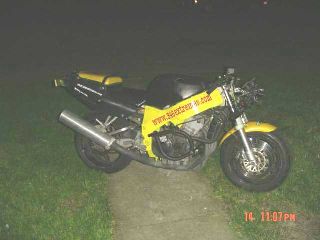

i have a couple pics of the triangles and the motor mount ears
Attached Thumbnails Click image for larger version

Name:	bike2.jpg
Views:	182
Size:	12.0 KB
ID:	98184
Old Sep 20, 2004 | 11:39 AM
  #10
Rolla1990's Avatar
Registered User

Joined: Jul 2004
Posts: 406
From: Beer City, WI
Rolla1990 is an unknown quantity at this point
Re: Share your tips for setting up a good stuntbike

Originally Posted by Jaket
"re-enforce the frame by welding 1/4 incdh thick aluminum behind the entire frame,"

pics? sounds pretty agressive for 900RR?

Jaket

:YEAH I'd do it, my buddy looped his 900rr yesterday and broke on of the motor mounts on the frame clean off.
Old Sep 20, 2004 | 01:52 PM
  #11
IMR-Merlin's Avatar
Registered User

Joined: Nov 2003
Posts: 3,341
From: ManchVegas, NH
IMR-Merlin is a decent person
Re: Share your tips for setting up a good stuntbike

Originally Posted by bill parr
i have a couple pics of the triangles and the motor mount ears
Must suck checking and adding coolant.
Old Sep 20, 2004 | 04:14 PM
  #12
MikeM's Avatar
bp chaser

Joined: Oct 2002
Posts: 85,659
From: LI, NY and I drive in Australia
MikeM User spends way too much time asking for repMikeM User spends way too much time asking for repMikeM User spends way too much time asking for repMikeM User spends way too much time asking for repMikeM User spends way too much time asking for repMikeM User spends way too much time asking for repMikeM User spends way too much time asking for repMikeM User spends way too much time asking for repMikeM User spends way too much time asking for repMikeM User spends way too much time asking for repMikeM User spends way too much time asking for rep
Re: Share your tips for setting up a good stuntbike

Originally Posted by Jaket
"re-enforce the frame by welding 1/4 incdh thick aluminum behind the entire frame,"

pics? sounds pretty agressive for 900RR?

Jaket
sounds like you dont know alot of 900 stunters yet. Those things crack like hell near the triangle.
Old Sep 20, 2004 | 06:31 PM
  #13
Mikie's Avatar
I Enjoy Posting At StuntLife!

Joined: Nov 2003
Posts: 4,357
From: I-35
Mikie is an unknown quantity at this point
Re: Share your tips for setting up a good stuntbike

"Share your tips for setting up a good stuntbike"

Add gas to motorcycle. Use key to turn on said motorcycle. Ride around town popping clutch every 3 seconds on said motorcycle.

..... return said motorcycle to owner!
Old Sep 20, 2004 | 06:52 PM
  #14
bill parr's Avatar
I Enjoy Posting At StuntLife!

Joined: Dec 2002
Posts: 2,625
From: racine, wisconsin
bill parr is an unknown quantity at this point
Re: Share your tips for setting up a good stuntbike

Originally Posted by Flametoe
Must suck checking and adding coolant.
naw, you can see it from the back, you just put zip ties in place of the screws, when you need to add, you cut the zip ties and tip it back. besides unless you have something seriously wrong, you shouldnt loose antifreeze anyways. i never have
Old Sep 20, 2004 | 09:54 PM
  #15
xRR-riderx's Avatar
Registered User

Joined: Feb 2004
Posts: 427
From: pittsburgh, PA
xRR-riderx is an unknown quantity at this point
Re: Share your tips for setting up a good stuntbike

Originally Posted by Lb3
I use sprockets and cages cause I only want the best.
Exactly.... :YEAH
Old Sep 21, 2004 | 06:18 AM
  #16
Uncle.'s Avatar
What!

Joined: Feb 2003
Posts: 3,100
From: Newcastle, Australia
Uncle. is an unknown quantity at this point
Re: Share your tips for setting up a good stuntbike

I loose a bit on long *** rev limiter burnouts dont know why
Originally Posted by bill parr
naw, you can see it from the back, you just put zip ties in place of the screws, when you need to add, you cut the zip ties and tip it back. besides unless you have something seriously wrong, you shouldnt loose antifreeze anyways. i never have
