954 Tip Over

OK I looked in the search and nothing came up and I went back 10 pages and couldnt find anything so don't freak out on me. LOL.


I just bought this bike and the guy said the tip over sensor was already fixed where it wouldnt shut off, but I just came back from ridin a bit and when I brought it back (it was not even to the balance point) the thing shut off. I had to flip the on/off switch a couple times to start the bike back up again. So how do you fix the tip over sensor where it wont do this!!!!!!!!!!!! Let me know please.

Thanks Justin
Old Aug 6, 2007 | 06:38 PM
  #2
f4ibry's Avatar
u been huffin?

Joined: Jan 2005
Posts: 2,285
From: SACTOWN,cali
f4ibry is an unknown quantity at this point
Re: 954 Tip Over

**** dude i forget on the 954 tip switch


try using google and type ur search like this

site: stuntlife.com (then your search topic)

it usually works pretty good
Old Aug 6, 2007 | 06:48 PM
  #3
KAZ954's Avatar
Registered User

Joined: Jun 2005
Posts: 136
From: StL
KAZ954 is an unknown quantity at this point
Re: 954 Tip Over

i think u connect the two outer ones(red&green?) and leave the middle......it was a long *** time ago when i did it so im not 100%

Last edited by KAZ954; Aug 6, 2007 at 07:43 PM.
Old Aug 6, 2007 | 08:09 PM
  #4
atnuts's Avatar
Registered User

Joined: Oct 2002
Posts: 3,995
From: joi-zee
atnuts is an unknown quantity at this point
Re: 954 Tip Over

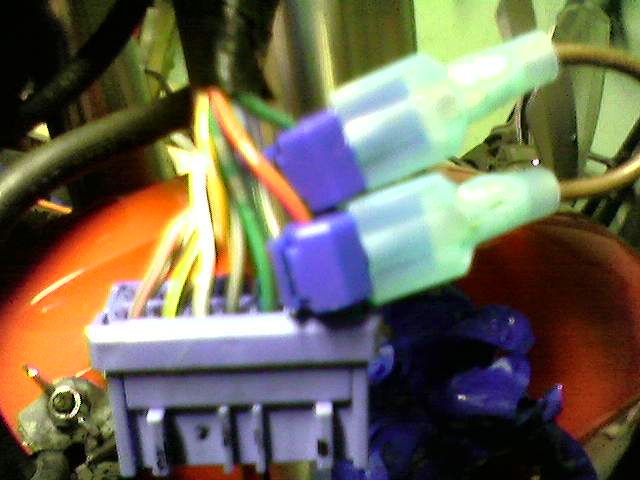

here's a crappy cell pic of how mine is jumped. hope this helps.
Attached Thumbnails Click image for larger version

Name:	954_tipover1.jpg
Views:	17
Size:	35.9 KB
ID:	197850
Old Aug 7, 2007 | 12:18 AM
  #5
jdridin's Avatar
Thread Starter
Registered User

Joined: Oct 2003
Posts: 1,101
From: Cape Girardeau, MO
jdridin is an unknown quantity at this point
Re: 954 Tip Over

So you have to actually connect the wires to the some of the main wires on the main harness as well? I thought you could just take the two outer wires like KAZ was saying and splice them and connect them two eachother and that would do it. Red to Green on one side and Green to Red on another side. Let me know if this sounds right.

Thanks Justin
Old Aug 7, 2007 | 01:27 PM
  #6
-Loco-'s Avatar
Registered User

Joined: May 2007
Posts: 952
From: Antwerp, Belgium
-Loco- is a decent person
Re: 954 Tip Over

you have to connect the green and the red wire and tape the white of, the wires are comming out of a small black box inside your upper fairing

https://www.stuntlife.com/forums/443...er-sensor.html
Old Aug 7, 2007 | 03:36 PM
  #7
jdridin's Avatar
Thread Starter
Registered User

Joined: Oct 2003
Posts: 1,101
From: Cape Girardeau, MO
jdridin is an unknown quantity at this point
Re: 954 Tip Over

Thanks Man.

Peace Justin
