Making a stock f4i pipe a shorty?

Thread Tools

Search this Thread

Old Aug 21, 2005 | 09:49 PM
  #1
sk8man311's Avatar
Thread Starter
Registered User

Joined: Oct 2002
Posts: 551
From: Houston, Tx
sk8man311 is an unknown quantity at this point
Making a stock f4i pipe a shorty?

Has anybody cut the stock can? It's welded at the end instead of rivets. Just wondering if anybody has done this and can give advice. If you have pics that would be nice too. The stock can is super long.
Old Aug 21, 2005 | 09:57 PM
  #2
Z-UNIT's Avatar
Registered User

Joined: Aug 2004
Posts: 6,124
From: wherever willie is
Z-UNIT is an unknown quantity at this point
Re: Making a stock f4i pipe a shorty?

yup cut right next to the weld so te end cap falls off...then cut ur pipe down, so its as close to the 4 inside pipes as u can get...then weld the end cap back on....its stainless steel, so make sure u kno sumone who can weld stainless
Old Aug 22, 2005 | 07:12 AM
  #3
jimmyjames007's Avatar
Registered User

Joined: Jun 2004
Posts: 141
From: 808
jimmyjames007 is an unknown quantity at this point
Re: Making a stock f4i pipe a shorty?

Just did mine. It's not as easy as we thought. First of all, there are three chambers in the cannister. You have to figure where you want to cut -- a chop saw is what we used (don't forget it's stainless steel so get the appropriate blade). Then we had to cut down one of the pipes inside because it didn't match up. This was the easy part.

Welding the damn thing took the longest; because of two things: 1. the ends didn't match up perfectly and 2. a fiberglass lining was contaminating the welds so it took extra technique.

Total time was around 1-2 hours, but keep in mind a experienced welder did this.
Anyhow, if you're thinking of doing it -- the only thing I recommend is to be sure to remove or clear the fiberglass lining before you start to weld. Good luck...

Hope this information helps because I didn't have any before I did mines. PEACE...

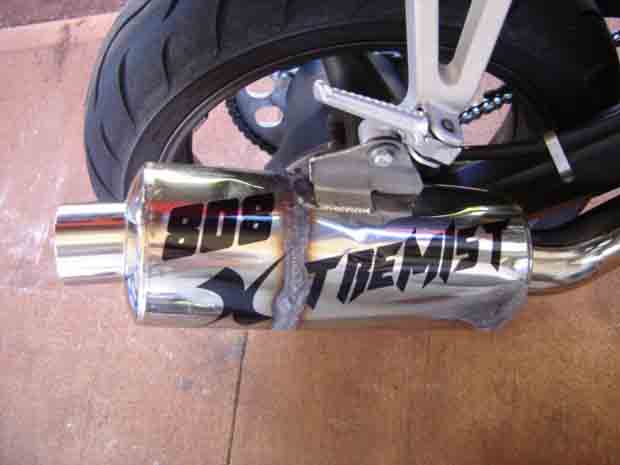

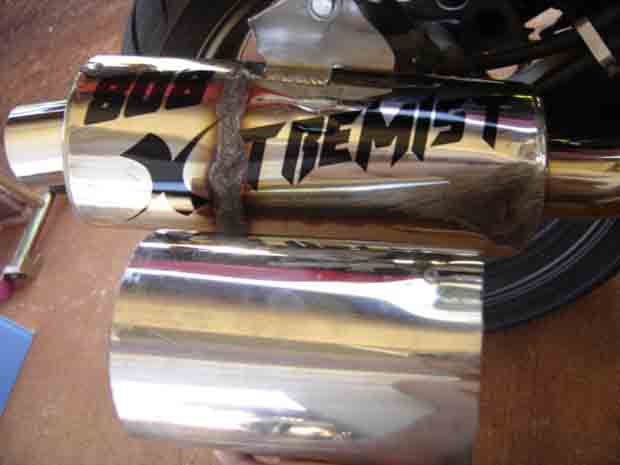

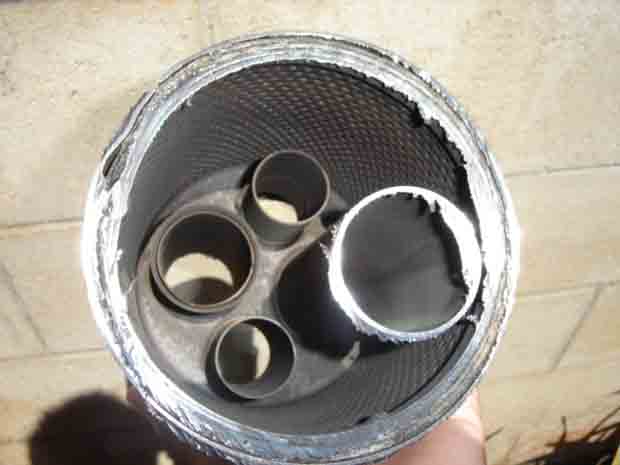

Attached Thumbnails Click image for larger version

Name:	exhaust 1.JPG
Views:	20
Size:	33.5 KB
ID:	149860   Click image for larger version

Name:	exhaust 2.JPG
Views:	15
Size:	33.8 KB
ID:	149861   Click image for larger version

Name:	exhaust 3.JPG
Views:	18
Size:	33.5 KB
ID:	149862
Old Aug 22, 2005 | 04:18 PM
  #4
pineapple's Avatar
Regular StuntLifer

Joined: Aug 2004
Posts: 653
From: Tampa, Florida
pineapple is a decent person
Re: Making a stock f4i pipe a shorty?

i did it with my carbon fiber micon it turned out nice... just took a lil time. had to split the can, cut the out side. then cut the tube that runs down the middle an weld the end part back up.. and boom put it back together
Old Aug 22, 2005 | 05:19 PM
  #5
jowalskiMO's Avatar
I Enjoy Posting At StuntLife!

Joined: Oct 2003
Posts: 1,935
From: BACK IN THE KCMO!!!!
jowalskiMO is an unknown quantity at this point
Re: Making a stock f4i pipe a shorty?

1) Get access to big chop saw, like at a muffler shop (midas, custom muffler, wherever) sometimes, a sixpack will do the trick if you don't know people.....hint..hint.....
2) Cut the endcap off right on the stock weld.
3) Decide how much to chop off, and monster truck that ish, dont worry about the fiberglass that will fly (I recommend a mask, or atleast half-a$$ it and use your shirt) you want to atleast cut off 6 inches, mine is cut way down for really leaned in circles.
4) Access a wire-feed gas shielded MIG welder, or pay someone to weld it. The fact that it's stainless doesn't matter, you can just weld it with normal steel welding wire, just turn the heat down, and only weld a half inch section at a time so you dont melt through it, since it's really thin.
5) Put it on and rejoice in the fact that you don't hit that thing anymore.

Last edited by jowalskiMO; Mar 16, 2006 at 03:25 PM.
Old Aug 22, 2005 | 05:23 PM
  #6
jowalskiMO's Avatar
I Enjoy Posting At StuntLife!

Joined: Oct 2003
Posts: 1,935
From: BACK IN THE KCMO!!!!
jowalskiMO is an unknown quantity at this point
Re: Making a stock f4i pipe a shorty?

Oh yeah, don't worry about the fiberglass when you go to weld it, unless you are burning through the metal it shouldn't be a problem. There's no way its worth the time to try to pull it all out. Remember that the straighter you cut it, the easier it is gonna be to weld back together.
Old Aug 23, 2005 | 06:17 PM
  #7
jimmyjames007's Avatar
Registered User

Joined: Jun 2004
Posts: 141
From: 808
jimmyjames007 is an unknown quantity at this point
Re: Making a stock f4i pipe a shorty?

Don't pull all the fiberglass out, just where the welds are.
