Alright this is on an 03 r6 so anyone got pics of what the wiring looks like and helpful instructions?

Stupid italian instructions



its easy, on the other side of instructions is in english

i wired the big flood light to the low beam wires and the other H3 bulb as highs.

Take both positives from flood light (theres a little bulb in there too) twist em together, put connector on and plug it into the positive wire for low beam. Do same for grounds.

Do same for other light but to the high beam wires.

or if you want to be able to turn the lights off completely wire everything into the high beam line. when you have it on low beams your lights will be out ( thats how it works on 636's cause stock headlight only one side comes on for low beam)



did you use the connecters that came with it?

I learn best from pics, so if its not a big hassle that would be great!!

P.S. Only thing in English is how to put the rubber traps on...I would think thats the part thats easy or self explanatory!!



Need to clarify if these are right and will work!!

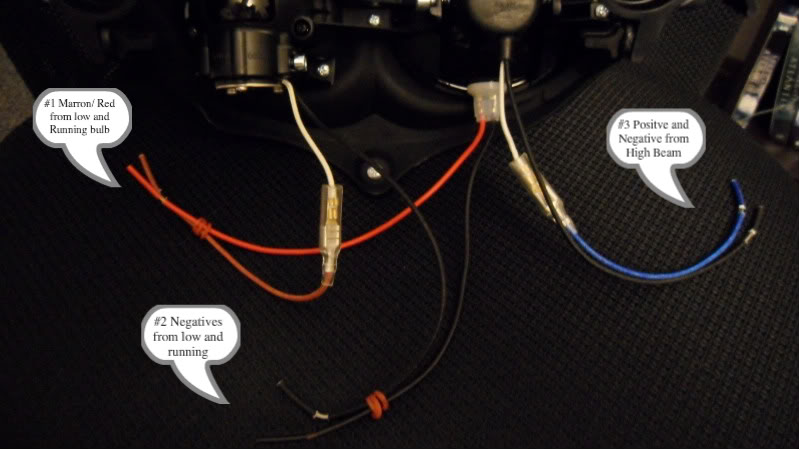

1) Twist #1 wires together and #2 wires together
2) Connect #1, #2 to number #5 low beam side black to black colors to colors

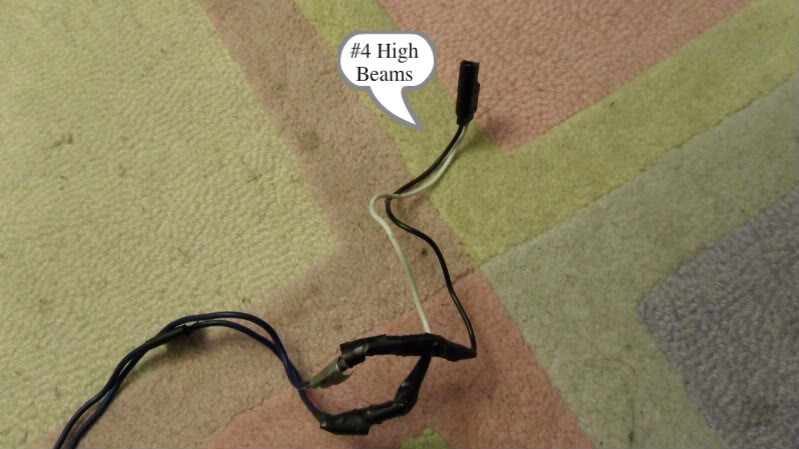

3) Connect #3 to #4 for high beams side
4) Test to make sure correct lights turn on...and Finished!!



yeah your pics are right way.

Looking at your pics the light on the left burns out all the time so id make that one your highbeam. It takes H3 fog light bulbs at autozone. Right side bulb I've used for 3 years as my running light and it hasn't burned out yet.

I'm prolly gonna change mine so there either on or off completely



I got my instructions in front of me and there definately in english....idk

Yea I used the connectors it came with and they plug right into the 636 stock connectors so I didn't have to splice anything. I'd guess you could do the same



thanks for the help!!
