this is a retarded question, but this is my first street fighter style bike. I have removed the whole front fairing and its not turning over. Fuel pump wont even activate... I know it has something to do with the wiring, but how do you fix this?



You have to plug the harness in, and prob disable the tip sensor so you can stick it in the front behind the light with all the other wires



+1



How can I plug the harness in if I want to remove all the lights and gauge's and ****? Also wheres the tips sensor at?



the tip over sensor is in the nose of the front fairing. there is a three wire connector it plugs into. you have to short two of the three wires together to bypass it



https://www.stuntlife.com/forums/pos...224-post5.html

https://www.stuntlife.com/forums/443...ip+over+sensor



thanks man, very helpful!

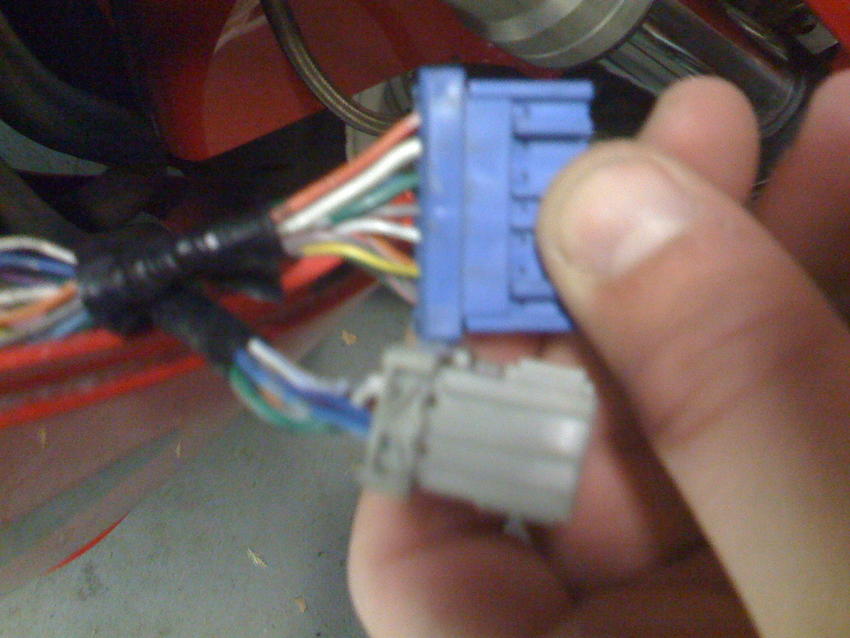

here are the two connectors... which are the correct wires, because there are two green's and the other picture of the dudes he was doing it to the white connector...



cross the wires on the harness side, before that connector, prob solved



ya, thats what I plan on doing, but which wires is it? the 2nd pic far right redd and green? but theres also two green???



Problem solved!!

2nd pic its the two wires far right, the red and green (not the green that visible, its directly behind the red).

Thanks guys!!!
