i want to convert my 636 to havung DB bars but i love having the GPR on my bike for doing stoppies and such. how can i mount up a set of dirtbike bars while not loosing the room for my GPR stabilizer or what stabilizers will work for underneither a set od db bars? i know a lot of guys rock streetfighterz and i know a lot of you do sick stoppies, so whats your setup?



I cant decide to run it on top or underneath the bars yet
but Im gunna set up 1 of these 2 (But its on a 900RR)



thats exactly what i want, i'd rather have it on bottom but i think those are kits that GPR makes for dirt bikes, they dont make any kits like that for sportbikes, idk y but they dont, i already asked um, its either make your own or make room for the kit underneith of the bars but most mount kits are good size



I ordered a gpr for my 900RR and I will just figure out
what to use to mount to the frame to stabalize it...

Ya its not a simple bolt on ment for it, ( you just have to
think outside the box.. )



very true very true. i wanna see some pro setups of what some other guys run



tell me if this actually works



come on someone hit me up with soem pix of thier setups



all you need are dirtbike bar risers that are high enough to clear your gpr. right now i have 40mm tall risers, they make taller ones. check the distance from your triple to the top of the gpr and just buy risers that are taller than that.

also, i don't think i need to mention it for you but i will anyways, you just mount the risers far enough apart to clear the gpr on the sides.

you're other option is to just run a normal rod style damper. they are actually tighter than rotory if you get a nitrogen charged one like ohlins or hyperpro. that way your tiny mounting bracket will fit under just about any set of risers and it won't get in the way. take your pick



oh ya, those setups from GPR are highly expensive. you have to buy that whole triple clamp. i think i remember seeing a complete billet triple clamp like that for a 929 and it was around 500$ just for the clamp....and you still have to buy the gpr (which you already have).



Those are Fukin AWESOME but LOTS of $$$$$$$$$, and the height of the db bars and risers are VERY HIGH!!!!!
like 6" over stock!

But SICK!!!



they're not that tall.....those look tall because they are dirtbikes. the gpr stabilizer is about 3" off the triple, so if you get risers to clear that you will have a 3" rise. i don't actually think they are even 3" tall. i think that is an over-estimation, but at that it would still only require 75mm risers....i'm running 40mm right now just normal and i don't think they are even close to what i would call "tall"



+1

I wouldnt think they would be much taller than what
every W/ DB bars are runnin now..

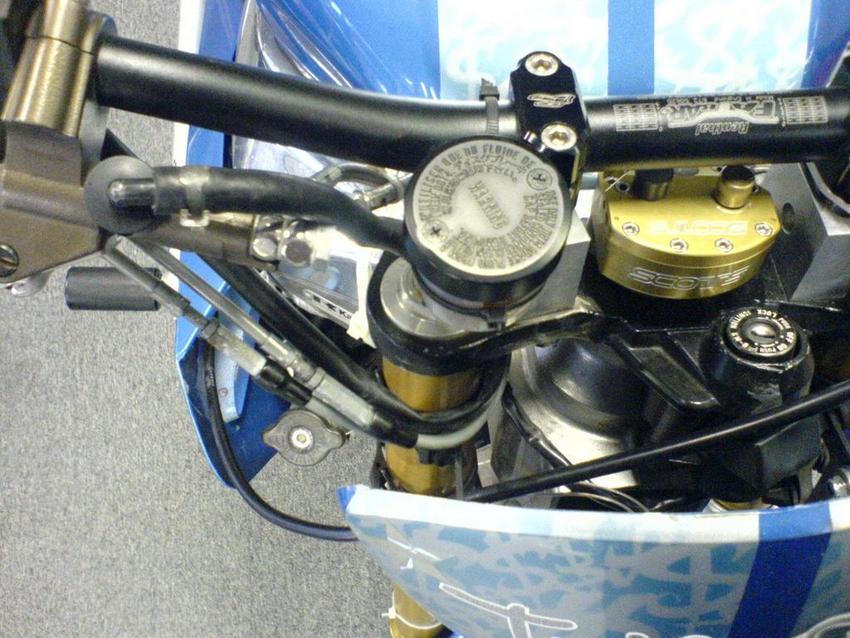

This is Tnecks - I'll post one more I have from someone else.



And this one is Dizzle. I was looking a while ago and saw these pics of setups. I think it was Tneck said that he made the risers a little higher so it would fit.



another alternative https://www.stuntlife.com/forums/74-...-hottness.html



Are the bar clip ons the only thing you need? I'm a little slow when it comes to putting **** together. I have the LSL kit with Renthal bars now. What would I need to buy to be able to hook my bike up w that. Do I only need the bars or do I have to buy anything else? That **** is pimp.



it came just like you saw in the pics i took, the bars are cut and have a groove in them for the clamp. did that answer your ? cables and brake lines seperate tho



I think it does - so they come w the clamps and the clamps hook up to the tripple and you can hook your damper up in the middle. Sounds easy enough but i know I'll be in my garage for like 8 hours trying to hook this **** up. Good lookin out w the info. I'm gonna order them now.



Let me scratch that - they only have em for F4i's. ****** Suzuki's. Dam.



well they just clamp on like your clip ons do. and use your stock triple

edit oh damn that sucks sorry man maybe you can talk him into making them dunno tho
