well if you just take the one vaccum line off the factory t [clean air valve] and block off that line it is the same as blocking all of them of but there is less of a chance of a vaccum cap blowing off and causing a mysterious vaccum leak....i just threaded a long skinny bolt in the vaccume line i took off the factory t



Gotcha, understood now. It threw me off cause the original link the guy has them all capped except the ones going to the plug.

The other plug (clutch side) that sits above the little vacc. lines has nothing going to it, no line or plug. Guess I'll leave it.

I'll write up everything on 05'-06' with pics when I'm done.



I did the T joint bit and the little hoses I just took one off and the joint that was in there and plugged it back into the throttle things



Best Car & Motorcycle Insurance | Auto/Moto Protection Today | FREE Trade-In Quote



https://www.stuntlife.com/forums/444...ighlight=kleen

Best Car & Motorcycle Insurance | Auto/Moto Protection Today | FREE Trade-In Quote



What about under the other plug? There's a place for a vacc. line but there is absolutely nothing to connect to it.

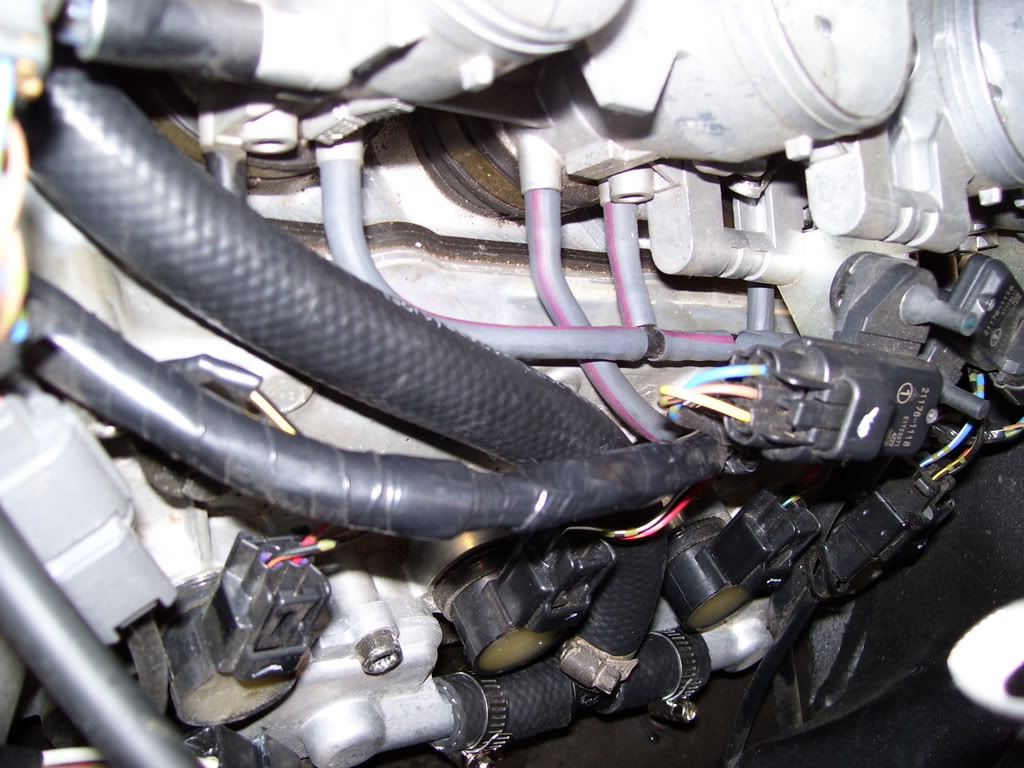

This as all straight now, but the 2nd pic is where i'm puzzled. I don't rememnber removing anything so maybe I just leave it. dunno.
Throttle side


Clutch side



i dont know what you mean



See the plug on the left side, where the circle is looks the same as the right side. But the right side has a vacc. line hose connected to it, left side there's nothing. That's what I'm wondering about. The Kleen Air Mod is done, but that one plug with the nipple under it is open (where it's circled), nothing plugging it or nothing for it to plug into.
I don't mean to complicate things, honestly.lol



are you sure there wasn't one there.....



well put it together and see how it runs if there is supposed to be some thing there you will probably get an fi light ...

my 03 only has one of those i think



i find it hard to beleive there is no line vaccum there though



I know me too. haha
Here's a better pic I just took. I removed the plugs from the holder thingy's.



in your first pic isn't there a line goin to it



No.........



No, it looks that way but that's the right side plug. The black rubber cap is where the line went to the T but I capped it.

I did this when I read this:



http://www.myimager.com/imagedb/upl/...907698.jpg?959

don't the two i marked with a yellow line go to each of them ?



Hold on, Imma gonna draws some lines.



never mind i see the one i marked on the left just goes to that t fitting ..



dude i am totaly reaching at straws here but maybe the one that doesn't have a vaccum line going to it is there to read barametric pressure or some **** like that



It just looks that way Roger. The left one is actually just resting on bracket/holder.



yep i noticed that after i posted it
