i have this after market stator but dotn no what wires go here
#1
i have this after market stator but dotn no what wires go here
the stock crf 50 has a 2 wire stator i bought this 4 wire stator i was gonna use for LED head lights. but dont no what wires go to which. can you guys help?
#3
Re: i have this after market stator but dotn no what wires go here

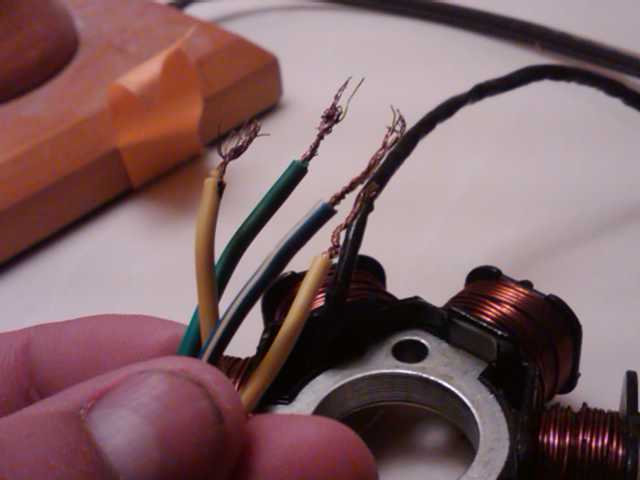

i dont have any black wires? on this stator i have 2 yellow 1 green and one blue with a whit stripe. the black you porbly looking at is the shrink wrap for the magnetic pick up
#4
Re: i have this after market stator but dotn no what wires go here
Just cut my own harness from scratch for one of my custom mini projects ive been working on.
Here is the diagram i came up with and a few pics of the bike. No blinkers but tail light and headlight. exhaust also functions as the tail light. Made the carbon tank and most of the carbon myself.
Last edited by reynolds_brad; 09-13-2010 at 01:10 AM.
#7
Re: i have this after market stator but dotn no what wires go here
Each of your yellow wires would be used for lighting. one would be for direct running lights of some sort and would need be regulated by a regulator otherwise you will be popping bulbs. The other would be used to send also to a rectifier for the battery system or switched BAT power. the blue white sends the pulse to the CDI and the last wire is also connected to the CDI which i believe either powers the CDI or completes the circuit for the pulse. That last wire i mentioned looks to be your green wire. My bet is that would be plugged into the black with red wire on your harness. Obviously blue white to blue white on the harness as well.
Last edited by reynolds_brad; 09-14-2010 at 02:15 AM.
#9
Re: i have this after market stator but dotn no what wires go here
okay i instaled the stator in my bike and hooked up the wired like it said blue white to blue white and green to black red and try to fire it up but never did now in stuck. oh and on the regulator im aware that there are 4 wires red ,green,yellow,white. but dont no which goes i dont have the harness for it.
#12
Re: i have this after market stator but dotn no what wires go here
2 wires go to the bike.
2 wires are DC output to run the lights. The stock stator does NOT output a DC voltage. Which is why u have those 2 extra wires.
Take ur stock stator and sit it beside the new stator. Trace the wires and see which whires go where on the stator. You should be able to distinguish which ones go to the bike. Then obviously the other 2 are for your lights.
Or u can just take 2 at a time and hook them up to the bike and try to crank it. Real easy to figure out.
2 wires are DC output to run the lights. The stock stator does NOT output a DC voltage. Which is why u have those 2 extra wires.
Take ur stock stator and sit it beside the new stator. Trace the wires and see which whires go where on the stator. You should be able to distinguish which ones go to the bike. Then obviously the other 2 are for your lights.
Or u can just take 2 at a time and hook them up to the bike and try to crank it. Real easy to figure out.
#13
Re: i have this after market stator but dotn no what wires go here
thats exactly what i did but nothing worked. i went to go get it test to see if it worked and it worked fine for other bikes but not mine. the *** hole that tested it dint tell me which ones there were either!
