F4i Tip Over Sensor Help - Stunting Help and Advice

SLOPPYSECONDS · 12-27-2005, 12:18 PM

I Need To Know How To Get Rid Of The Stupid Thing. I Have A Wiring Diagram But I'm Not To Good With Electrical.

JOHN J · 12-27-2005, 02:14 PM

just go to the search and there will be alot for the f4i tip sensor w/pics also.

The Jeweler · 12-27-2005, 05:04 PM

on my 954 there were 3 wires coming into the tip over sensor i just took of the sensor and jumped the two outside wires together not sure if yours is the same but that 's what i did on my Honda

Suicidl · 12-27-2005, 05:16 PM

if you are not running headlights or no front harness just cut the red and the greeen on oposite sides of the plug that goes to the front harness and put them together

or if you do have lights just cut the 3 wires going to the tip and put the outside wires together

atnuts · 12-28-2005, 01:28 AM

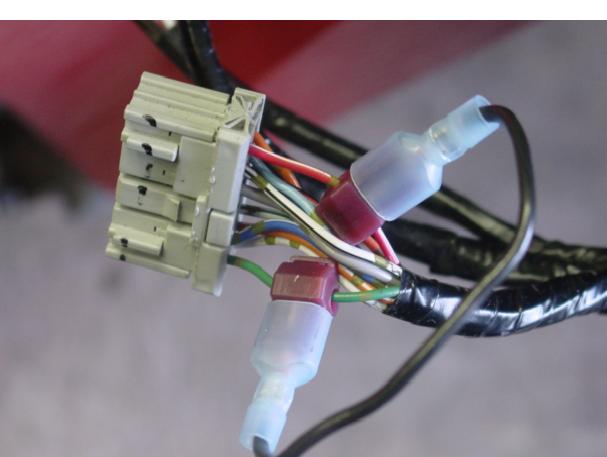

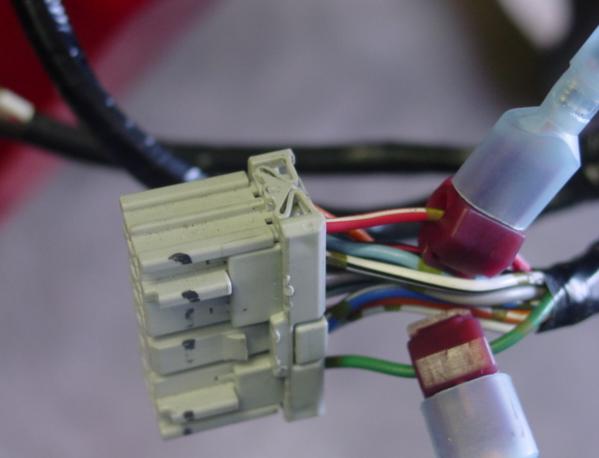

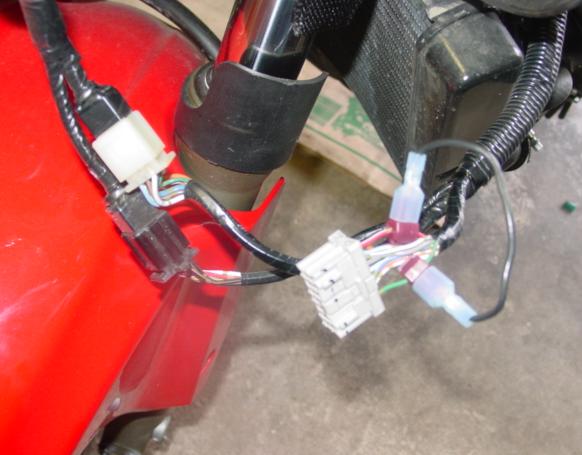

here ya go, I've posted this a bunch of times...just jump those wires that way and you're golden...

AzN~BoI_585 · 12-28-2005, 03:30 AM

He did it all professional...i stuck a horse shoe shaped piece of wire in the plug and wrapped it in electrical tape

sprocketz · 12-28-2005, 03:41 AM

Quote:

Originally Posted by AzN~BoI_585

He did it all professional...i stuck a horse shoe shaped piece of wire in the plug and wrapped it in electrical tape

might wana think bout redoing it and make a super good connection there if it starts to get coroded you dont want a intermitent open there, might cause you mouse trap or somthing at the wrong time

Ho_Hey · 12-28-2005, 04:00 AM

If you have full fairings just remove the windscreen look just behind the instrument cluster for a small black box with 3 wires one red, one green and the other is white going to it (tip over sensor) then cut the tip over box off tie red to green and leave the white taped off. I did mine this way since I figured I wouldn’t need the tip over sensor again I just took the box out all together through the spot just under the forward section of the windscreen. This is how I have mine hooked up and I never had any problems with the bike dieing out on me after I removed the tip over and crossed my wires.

SLOPPYSECONDS · 12-28-2005, 08:58 AM

Thank You Everyone

-SKETCHY- · 01-03-2006, 04:08 PM

Is It The Same On A 600rr?

NINER · 01-03-2006, 04:31 PM

Quote:

Originally Posted by SKETCHY146

Is It The Same On A 600rr?

Yes. And a 929 and a 954.

Brad C. · 01-11-2006, 12:30 PM

i just took the top section out of the bottom section its kinda difficult but works fine no wiring needed

s750 · 02-09-2006, 12:16 AM

ya it sucks if your shit shuts off doin a wheelie mine did almost fell off the front again it came down so hard

Kaotic · 02-09-2006, 08:23 AM

subscribed i gotta do this soon

stuntrider227 · 02-16-2006, 12:27 PM

I got my f4i last night and this first thing I am going to do.

stuntrider227 · 02-16-2006, 10:10 PM

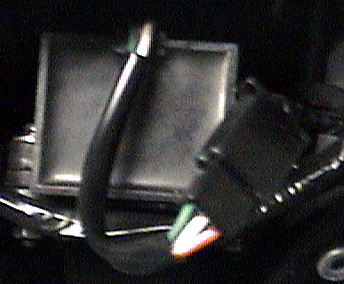

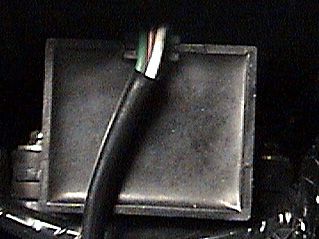

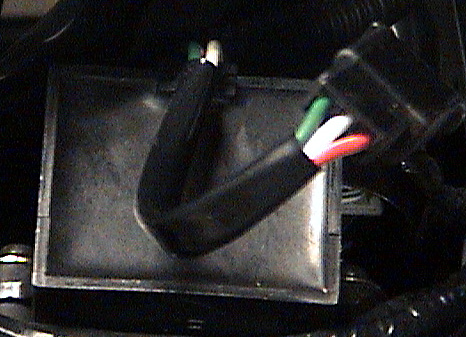

ok is this the tip over sensor( SEE PIC )? If so I just cut all wires and tie red and green together and leave white taped off? This won't affect the running of this bike at all if I do cut wires?

stuntrider227 · 02-17-2006, 09:27 AM

^^^someone help me out so I can put this thing back together? ^^^^^^

scott3824 · 02-17-2006, 09:45 AM

just like instructions say cut green and red and tie them together.

stuntrider227 · 02-17-2006, 10:15 AM

cool thanks Scott just making sure that was the right box. It doesn't look like the same plug as atnuts posted. thats why i was confussed

SIC J · 03-22-2006, 04:04 AM

i did that to mine and for some reason it didnt work and niether did my bike... hahaha... bike wouldnt start anymore...

i did it gangsta style.... i cracked open the bottom of the case, let the water leak out, and then removed that part that swings around inside it... never have to worry about the wiring again

Joseph
SIC Riders
SoCalStunts.com
