fairing repair by beardo
#1
sack up or pack up!!!
Thread Starter
Join Date: Feb 2008
Location: dirty five thirty..bish!!!!
Age: 47
Posts: 2,938
fairing repair by beardo

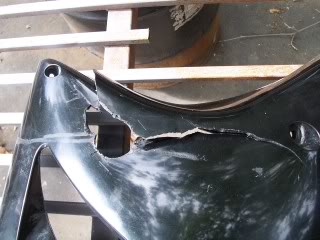

so this thread is for my little buddy mdub4life29 he asked me how i repair broken plastics...after a brief explanation, he replied "i need a step by step"..lol so Dub ...here ya go
use plumbers tape and drill 1/8" holes in it, drill the holes before you cut the tape..much easier

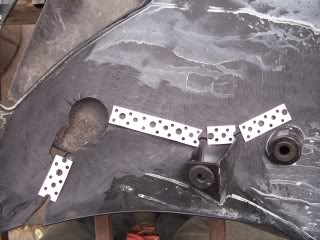

pre cut the tape to fit your damage
use a single rivet in each piece to secure it before drilling an other holes line up the tape as best you can to cover the damage and give you as much bite as posible for each rivet, drill a second hole and fill w/ another rivet to secure tape from moveing.

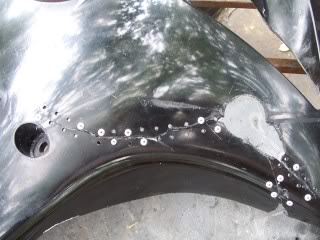

once you have all pieces secured in place w/ two rivets you can finnish drilling all the holes and fill w/ rivets

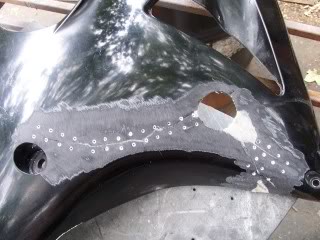

grind the area to be repaired so your f.glass will have something to stick to (this can also be done before any rivets are used) then pre cut pieces of f.glass to cover damage area

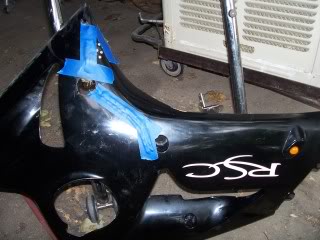

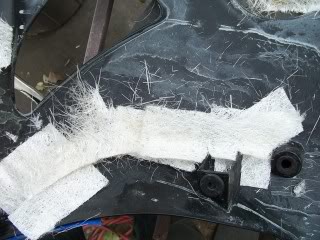

i used tape on the front side to keep the resin from running out and help to fill voids,clean area to be repaired w/ laquer thinner of other chemical that doesnt leave any residue. mix up you resin according to the directions and useing a diposable brush apply to damage and then lay the glass matting, dont skimp on the resin...but dont mix more than you can use in about 5 mins or it will be wasted.

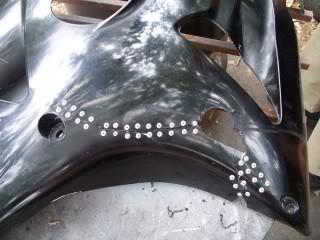

after you glass has hrdened you can peel the tape and useing the same 1/8" drill bit , drill JUST the HEADS of the rivets off, then grind or sand damaged area to give the body filler something to stick to

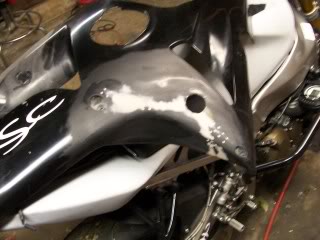

again clean area befor applying body filler

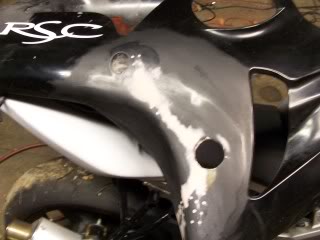

then sand, i used 120, then 220, then 320....prime and paint....
use plumbers tape and drill 1/8" holes in it, drill the holes before you cut the tape..much easier
pre cut the tape to fit your damage
use a single rivet in each piece to secure it before drilling an other holes line up the tape as best you can to cover the damage and give you as much bite as posible for each rivet, drill a second hole and fill w/ another rivet to secure tape from moveing.
once you have all pieces secured in place w/ two rivets you can finnish drilling all the holes and fill w/ rivets
grind the area to be repaired so your f.glass will have something to stick to (this can also be done before any rivets are used) then pre cut pieces of f.glass to cover damage area
i used tape on the front side to keep the resin from running out and help to fill voids,clean area to be repaired w/ laquer thinner of other chemical that doesnt leave any residue. mix up you resin according to the directions and useing a diposable brush apply to damage and then lay the glass matting, dont skimp on the resin...but dont mix more than you can use in about 5 mins or it will be wasted.
after you glass has hrdened you can peel the tape and useing the same 1/8" drill bit , drill JUST the HEADS of the rivets off, then grind or sand damaged area to give the body filler something to stick to
again clean area befor applying body filler
then sand, i used 120, then 220, then 320....prime and paint....
#2
Re: fairing repair by beardo
wtf son whered u get the hook up on side fairings i need some!!! so wait is that plumbing tape. . . . . tape ? it looks hard like erector set(from back in the day) what body filler do u use? and how flexible is it? does it just crack and fall out if u flex it too far? i have a bunch more questions lets blow this thread up with knowledge and answers
#4
sack up or pack up!!!
Thread Starter
Join Date: Feb 2008
Location: dirty five thirty..bish!!!!
Age: 47
Posts: 2,938
Re: fairing repair by beardo
wtf son whered u get the hook up on side fairings i need some!!! so wait is that plumbing tape. . . . . tape ? it looks hard like erector set(from back in the day) what body filler do u use? and how flexible is it? does it just crack and fall out if u flex it too far? i have a bunch more questions lets blow this thread up with knowledge and answers
interesting....never tryed it...might have to just for giggles.... i will rep you in 24 hrs...lol
Last edited by beardo; 06-04-2010 at 02:03 AM.
#7
Naarden Bike Super Store
Join Date: Feb 2006
Location: WWW.NAARDEN.BIZ ~ Sportbike Super Store
Posts: 1,992
Re: fairing repair by beardo
Just think, you always have a fall back plan as a used car sales man hiding ****! lol
That repair looks good, i wonder how good itll hold up, looks like its going to be pretty stiff. I doubt itll see much impact though.
That repair looks good, i wonder how good itll hold up, looks like its going to be pretty stiff. I doubt itll see much impact though.
#8
sack up or pack up!!!
Thread Starter
Join Date: Feb 2008
Location: dirty five thirty..bish!!!!
Age: 47
Posts: 2,938
Re: fairing repair by beardo
i have fixed several f4i tails like this and neve had a prob again... works good! the only reason this fairing broke is cause my buddy didnt drill a big enouph hole for the lower cross bar and it put pressure on the fairing...it wont break again...lol
#9
Re: fairing repair by beardo
decent yo...im thinking plastic welding then filling is cleaner and just as strong but hey im a glamour stunter and i even care about what the backside of my fairings look like...hahaha
#12
Re: fairing repair by beardo
use flex filler for the front and valley it down with a grinder.....body filler tends to be weak and crack.
http://www.urethanesupply.com/storeepoxy.php
good write up!
http://www.urethanesupply.com/storeepoxy.php
good write up!
#13
sack up or pack up!!!
Thread Starter
Join Date: Feb 2008
Location: dirty five thirty..bish!!!!
Age: 47
Posts: 2,938
Re: fairing repair by beardo
i really dont think there is any mods here any more to do that is there...lol i never see em n e ways....
ahhh never heard of it but good looking out.... if you keep the filler thin and use some poly.....whatever primer(feather fill is what i use) it seems to hold up well, that has been my experience anyways....
use flex filler for the front and valley it down with a grinder.....body filler tends to be weak and crack.
http://www.urethanesupply.com/storeepoxy.php
good write up!
http://www.urethanesupply.com/storeepoxy.php
good write up!
#14
Re: fairing repair by beardo
Sick write up Beardo. You're right about the mods. There's only 1 left that I know is on the site from time to time. Ima pm him this link and see about making it a sticky I know I got some plastics that I'd like to repair rather than trash so this will definitely help. Now if I could just buy something to make me not lazy I'll get to work on it lol
#16
sack up or pack up!!!
Thread Starter
Join Date: Feb 2008
Location: dirty five thirty..bish!!!!
Age: 47
Posts: 2,938
Re: fairing repair by beardo
Sick write up Beardo. You're right about the mods. There's only 1 left that I know is on the site from time to time. Ima pm him this link and see about making it a sticky I know I got some plastics that I'd like to repair rather than trash so this will definitely help. Now if I could just buy something to make me not lazy I'll get to work on it lol
#19
Re: fairing repair by beardo
damn never thought of using rivets and metal strap to secure plastics!
I just always have grooved a V in the plastics using a grinder, then used a soldering iron to melt hte plastics together, then I'd add 4-6 layers of glass to the back ,and 1 layer to the front
but that rivet idea seems like it would be way stronger
I just always have grooved a V in the plastics using a grinder, then used a soldering iron to melt hte plastics together, then I'd add 4-6 layers of glass to the back ,and 1 layer to the front
but that rivet idea seems like it would be way stronger
