Dont Know the name of this part!!!!

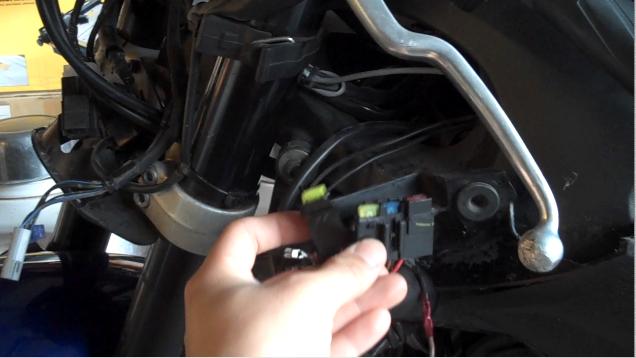

I just went down and i destroyed this fuse box on the left side of my 05 R6. Im trying to find it online but not really finding anything. Anyone know the specific name of the part or a website to find it?

Attached Thumbnails

Click image for larger version

Name: Untitled.jpg
Views: 51
Size: 28.9 KB
ID: 225819

Jun 1, 2009 | 10:42 PM

vegasrider2005

MVS

Joined: Apr 2008

Posts: 1,101

From: Groveton NH

Re: Dont Know the name of this part!!!!

try bikebandits.com

Jun 1, 2009 | 11:26 PM

mohnjontano

Thread Starter

Street Life Rider

Joined: Oct 2008

Posts: 102

From: Ontario, Ca

Re: Dont Know the name of this part!!!!

Im not too sure if this is the one

Its labeled "RELAY ASSY". see attachment

Attached Thumbnails

Click image for larger version

Name: Untitled.jpg
Views: 17
Size: 28.9 KB
ID: 225820

Click image for larger version

Name: YA0107158011.jpg
Views: 32
Size: 64.3 KB
ID: 225821

Jun 1, 2009 | 11:49 PM

vegasrider2005

MVS

Joined: Apr 2008

Posts: 1,101

From: Groveton NH

Re: Dont Know the name of this part!!!!

na thats just the relays themself he is looking for the little holder thing. call a yamaha dealer and see what they say

Jun 2, 2009 | 11:38 AM

serious

it is what it is

Joined: Jun 2009

Posts: 493

From: Los Angeles, CA

serious is an unknown quantity at this point

Re: Dont Know the name of this part!!!!

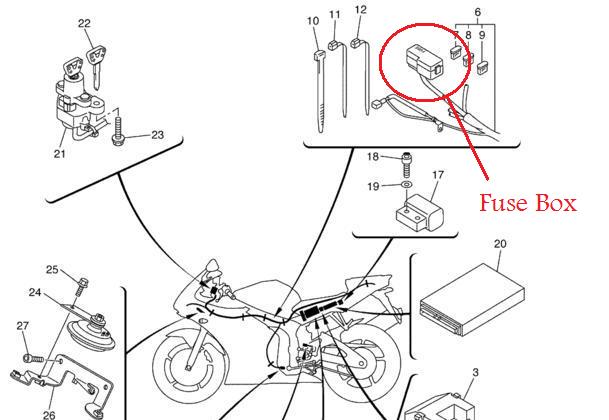

it's a fuse box but the diagram shows it as #6 which is the wire harness. I'm guessing that fusebox is part of the wire harness and not a separate part.

Attached Thumbnails

Click image for larger version

Name: YA0107159012.jpg
Views: 21
Size: 52.6 KB
ID: 225834

Jun 2, 2009 | 11:59 AM

WheelzUp

Honda > Yamaha

Joined: Feb 2009

Posts: 685

From: So. IL, USA

Re: Dont Know the name of this part!!!!

every site will call it something different for some reason

Jun 2, 2009 | 12:03 PM

serious

it is what it is

Joined: Jun 2009

Posts: 493

From: Los Angeles, CA

Re: Dont Know the name of this part!!!!

Quote:

Originally Posted by Five0Boyz

every site will call it something different for some reason

and the diagrams are are not drawn as accurate as it should be.

Jun 2, 2009 | 05:29 PM

mohnjontano

Thread Starter

Street Life Rider

Joined: Oct 2008

Posts: 102

From: Ontario, Ca

Re: Dont Know the name of this part!!!!

ok well ill just look for a new wire harness then thanks

Jun 2, 2009 | 05:38 PM

mohnjontano

Thread Starter

Street Life Rider

Joined: Oct 2008

Posts: 102

From: Ontario, Ca

Re: Dont Know the name of this part!!!!

holy s**t...its like $445. my wire harness is fine. the the plastic fuse box at the end is just damaged.

Attached Thumbnails

Click image for larger version

Name: YA0107159012.jpg
Views: 18
Size: 36.3 KB
ID: 225845

Jun 2, 2009 | 05:42 PM

#10

T-NECK

Hate Hate Hate!

Joined: Nov 2004

Posts: 9,133

From: O-Town, FL

Re: Dont Know the name of this part!!!!

ronayers.com

Jun 2, 2009 | 06:17 PM

#11

serious

it is what it is

Joined: Jun 2009

Posts: 493

From: Los Angeles, CA

Re: Dont Know the name of this part!!!!

Quote:

Originally Posted by mohnjontano

holy s**t...its like $445. my wire harness is fine. the the plastic fuse box at the end is just damaged.

do you know anyone at a motorcycle shop that might have a used or damaged harness that might be willing to let you cut off the fuse box? Do the fuses still work and you're just wanting a brand new "box"? That sux.

Jun 2, 2009 | 06:27 PM

#12

mohnjontano

Thread Starter

Street Life Rider

Joined: Oct 2008

Posts: 102

From: Ontario, Ca

Re: Dont Know the name of this part!!!!

Quote:

Originally Posted by serious

yes thats exactly the problem. I seriously dont want to pay for a whole harness when i just need the box. Can i just Mickey Mouse this with a different fuse box or just alot of black tape? lol
