My FI light is on......


How do I check the code???????



i got the whole manual in pdf if u want it. theres a wire under the seat u gotta ground out. i got the whole pdf manual if u want it. if you got aim i can send it to you over that.



I just replaced the battery and subframe so im sure I forgot something...
Do you know what wire??

How do I pull codes????



how do I check for codes?



its one wire by the battery, yellow I believe. its just there hooked up to nothing. crank the bike then ground that wire to frame. when you get the code, post it up & i'll let you know what it is



no.. there is a white plug coming off the harness in the subframe... you can take a paper clip and jump out the two wires.. right now i cant remember witch ones i havent done it in so long but i'll get back 2 ya lol

there actually may only be 2 wires going tothat plug check it out lemmie kno wat ya see



I will take a few pix



When I got this bike the subframe was broke into 2 pieces.

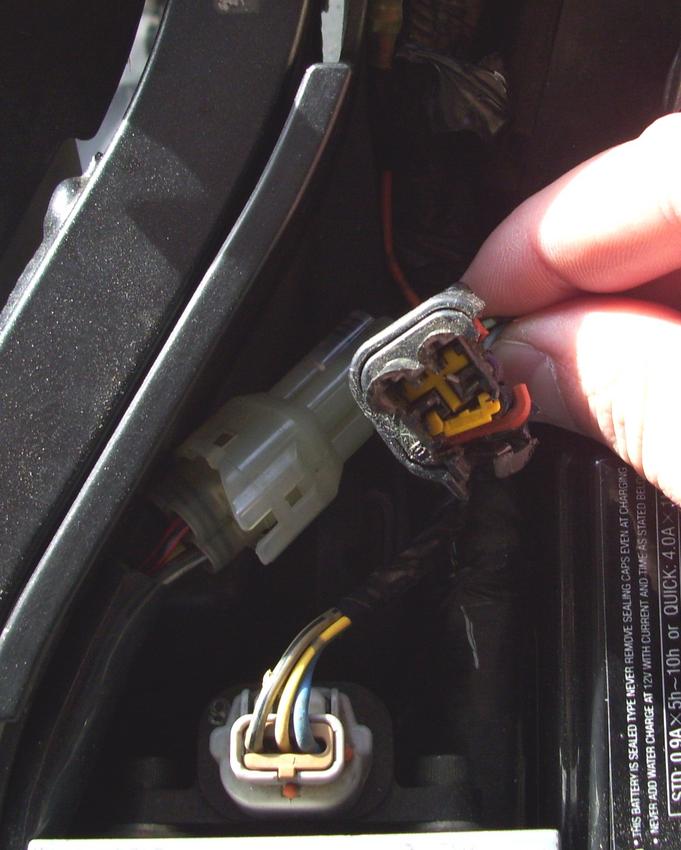

Not sure what this plug is for??? NEED HELP FI light is on.



looks like the plug where u do the jumper mod. nothing plugs into it, its just capped off.



PM me your aim, so I can get that manual...

or is it your SL screen name????



not the one i use the most, its in my profile tho. thadstroyer



damn, my manual is on the computer at work. if you dont get it let me know and I'll send it.



Isnt there a way to check for codes? Like turn the key on/off 3 times and see how many times the FI light blinks????



If you spend 5 min you can find the manual on the internet for free. I think i saw your old bike on craigslist a while back. You got the 05-06 now?



05-06 636 is just a project... 03-04 still 4 sale
