f4i Fan..
AQPWT
Joined: May 2006
Posts: 1,242
From: A shithole AKA IRAQ
Re: f4i Fan..
Originally Posted by Kaotic
anyone got any pics on what to cut and where to tie it to so it stays on all the time? greatly appreciated
Squid Extradoinaire
Joined: Oct 2005
Posts: 5,892
From: NE INDIANA
Re: f4i Fan..
unplug it and jump it with a paper clip. it will run all the time when jumped, then take it out when the bikes off. or put a switch in line. otherwise it will stay on even when the key is off and out of ignition.
...
Joined: Jun 2003
Posts: 9,589
From: Us
Re: f4i Fan..
I had posted this before to help out someone else, hope this gives you a good idea....
Originally Posted by Beto

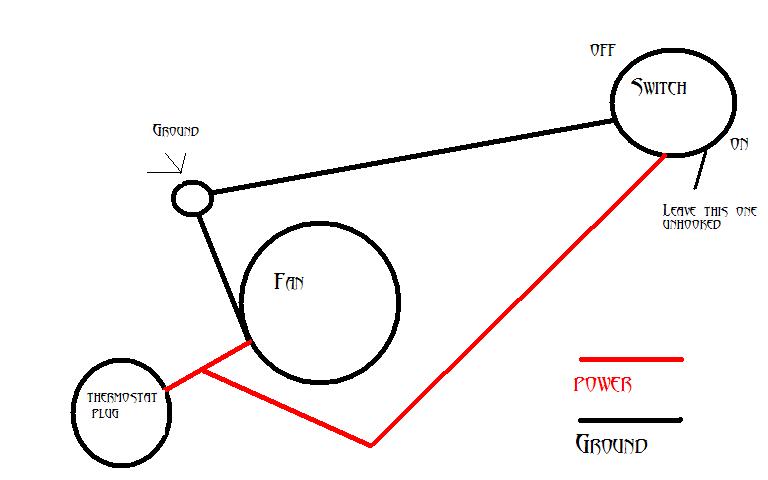

just drew this one on MS Paint. I hope this helps you out some man. Basically just splice the line that goes from your fan to that little plug on the radiator, and run a line from a switch onto it. If this doesnt work, just take your bike to someone you know that is good with electrical work and tell them to hook it up. OH yeah you shouldnt need a fuse this way. Mines hooked up so when the switch is on the fan stays on constantly, when the switch is off the fan works like it would stock. Good luck man...
...
Joined: Jun 2003
Posts: 9,589
From: Us
Re: f4i Fan..
Originally Posted by aaronwilliams
the way i stated will run the fan only when the key is on there is no switch to forget
