f4i radiator tab reinforcement..

What all can I do to beef this up? Mine just ripped next to the weld on one of the tabs. I've heard of people reinforcing these, whats the best thing to do?
Old Jan 7, 2006 | 05:42 PM
  #2
NME's Avatar
NME
I Enjoy Posting At StuntLife!

Joined: Jul 2004
Posts: 1,290
From: Savannah
NME is a decent person
Re: f4i radiator tab reinforcement..

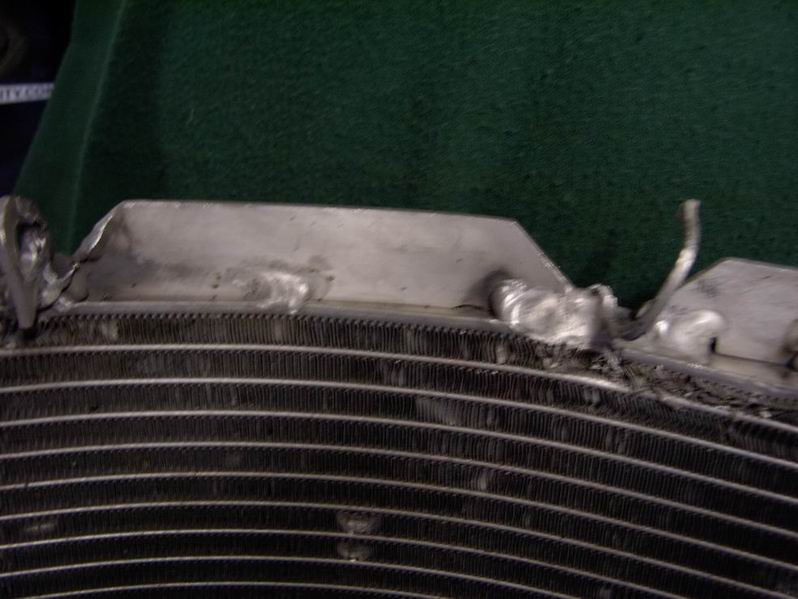

It can be a pain. I did mine on my 929 but they still have weak points. I couldn't think of a way to reinforce the ring parts. It held up to alot though.
Attached Thumbnails Click image for larger version

Name:	PDR_0002.JPG
Views:	34
Size:	82.4 KB
ID:	162115   Click image for larger version

Name:	PDR_0004.JPG
Views:	40
Size:	63.0 KB
ID:	162116
Old Jan 7, 2006 | 05:51 PM
  #3
SCOTT_Chychul's Avatar
Registered User

Joined: Oct 2004
Posts: 3,058
From: Canada
SCOTT_Chychul has a little shameless behaviour in the past
Re: f4i radiator tab reinforcement..

zipties !!! Duhhhh lol
Old Jan 7, 2006 | 06:07 PM
  #4
inolen's Avatar
Thread Starter
Registered User

Joined: Apr 2003
Posts: 5,046
From: stuntbums hq
inolen is a glorious beacon of lightinolen is a glorious beacon of lightinolen is a glorious beacon of lightinolen is a glorious beacon of lightinolen is a glorious beacon of lightinolen is a glorious beacon of light
Re: f4i radiator tab reinforcement..

Any other ideas? I'm thinking of just getting some longer pieces of metal, and using 2 strips (bent in l's going in each direction) rather than just one for each tab. I'm not a fabricator, but that seems like it'll make it stronger
Old Jan 7, 2006 | 07:31 PM
  #5
Lb3's Avatar
Lb3
Registered User

Joined: Nov 2002
Posts: 5,133
From: Dallas, Tx
Lb3 is an unknown quantity at this point
Re: f4i radiator tab reinforcement..

drill the other mount out on your frame and use a bolt on both sides. Usually when it rips off it is because the tab side slips off and then rips the other side to pieces.
Old Jan 7, 2006 | 07:48 PM
  #6
SCOTT_Chychul's Avatar
Registered User

Joined: Oct 2004
Posts: 3,058
From: Canada
SCOTT_Chychul has a little shameless behaviour in the past
Re: f4i radiator tab reinforcement..

Originally Posted by Lb3
drill the other mount out on your frame and use a bolt on both sides. Usually when it rips off it is because the tab side slips off and then rips the other side to pieces.
True story !
Old Jan 7, 2006 | 08:52 PM
  #7
Tony Carbajal's Avatar
Two Tone

Joined: Apr 2004
Posts: 3,044
From: SOCAL
Tony Carbajal is an unknown quantity at this point
Re: f4i radiator tab reinforcement..

stick to computers kid i already told u what to do for it. Just like mine and mikeys
Old Jan 7, 2006 | 09:08 PM
  #8
Z-UNIT's Avatar
Registered User

Joined: Aug 2004
Posts: 6,124
From: wherever willie is
Z-UNIT is an unknown quantity at this point
Re: f4i radiator tab reinforcement..

also make sure ur botto mounting tab is hooked up...so it keep weight off it and it wont rip the top ones as easily
Old Jan 7, 2006 | 09:43 PM
  #9
nsaneobsession's Avatar
Regular StuntLifer

Joined: Nov 2004
Posts: 787
From: East Coast
nsaneobsession is an unknown quantity at this point
Re: f4i radiator tab reinforcement..

i run straps around mine like you buy in a role at advance with the holes in it works great
Old Jan 7, 2006 | 10:36 PM
  #10
inolen's Avatar
Thread Starter
Registered User

Joined: Apr 2003
Posts: 5,046
From: stuntbums hq
inolen is a glorious beacon of lightinolen is a glorious beacon of lightinolen is a glorious beacon of lightinolen is a glorious beacon of lightinolen is a glorious beacon of lightinolen is a glorious beacon of light
Re: f4i radiator tab reinforcement..

Originally Posted by teamclc
stick to computers kid i already told u what to do for it. Just like mine and mikeys
Can you re-explain? I never looked at yalls and I forgot, heh.
Old Jan 7, 2006 | 10:38 PM
  #11
inolen's Avatar
Thread Starter
Registered User

Joined: Apr 2003
Posts: 5,046
From: stuntbums hq
inolen is a glorious beacon of lightinolen is a glorious beacon of lightinolen is a glorious beacon of lightinolen is a glorious beacon of lightinolen is a glorious beacon of lightinolen is a glorious beacon of light
Re: f4i radiator tab reinforcement..

Originally Posted by Lb3
drill the other mount out on your frame and use a bolt on both sides. Usually when it rips off it is because the tab side slips off and then rips the other side to pieces.
I'm too big of a ***** to touch my frame.
Old Jan 8, 2006 | 01:12 AM
  #12
Tony Carbajal's Avatar
Two Tone

Joined: Apr 2004
Posts: 3,044
From: SOCAL
Tony Carbajal is an unknown quantity at this point
Re: f4i radiator tab reinforcement..

Originally Posted by inolen
I'm too big of a ***** to touch my frame.

Old Jan 8, 2006 | 04:12 AM
  #13
SIC Nate's Avatar
www.sicriders.com

Joined: Mar 2003
Posts: 784
From: San Diego, CA
SIC Nate is an unknown quantity at this point
Re: f4i radiator tab reinforcement..

straps to the bottom=best fix, exhaust (hose) clamps around inlets to frame= temp(or perm) fix
Old Jan 8, 2006 | 04:42 AM
  #14
inolen's Avatar
Thread Starter
Registered User

Joined: Apr 2003
Posts: 5,046
From: stuntbums hq
inolen is a glorious beacon of lightinolen is a glorious beacon of lightinolen is a glorious beacon of lightinolen is a glorious beacon of lightinolen is a glorious beacon of lightinolen is a glorious beacon of light
Re: f4i radiator tab reinforcement..

Alright, so I'm gonna drill the frame.. should I worry about tapping out the hole?
Old Jan 8, 2006 | 12:20 PM
  #15
Michael D Rickman's Avatar
www.mxdcages.com

Joined: Apr 2004
Posts: 1,876
From: CA
Michael D Rickman is an unknown quantity at this point
Re: f4i radiator tab reinforcement..

you don't need to tap it.just run a bolt all the way through.i also make the lower brace out of 1/4" steel and chuck the aluminum one,the stock one flex's.
