another 954 front end on an f4i question

Thread Tools

Search this Thread

Old Jul 30, 2005 | 12:11 AM
  #1
atnuts's Avatar
Thread Starter
Registered User

Joined: Oct 2002
Posts: 3,995
From: joi-zee
atnuts is an unknown quantity at this point
another 954 front end on an f4i question

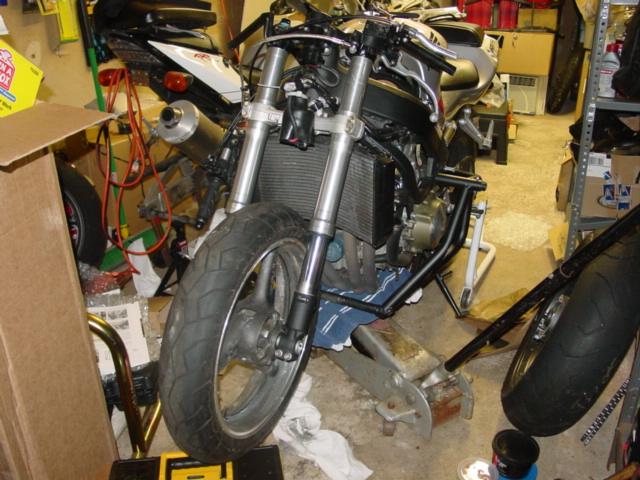

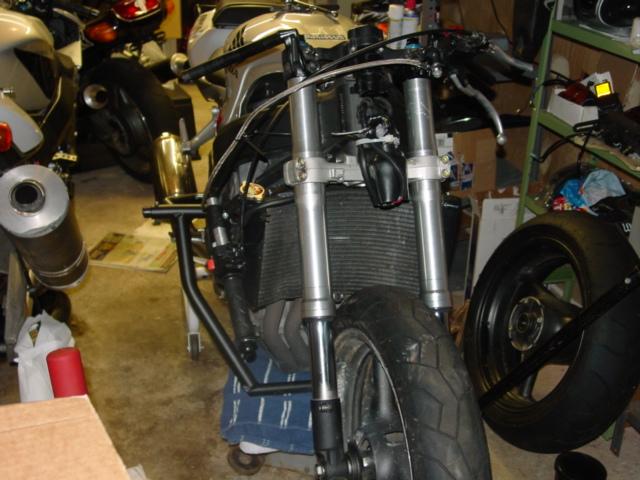

I just put one on my f4i. I'm almost done but I have one question. Is it alrite to use the stock f4i upper triple bearing assembly with the 954 front? I figured the stem size was the same and it fit good it should be ok. but need a pros opinion. here are some pics...
Attached Thumbnails Click image for larger version

Name:	954front-1.JPG
Views:	16
Size:	58.1 KB
ID:	147423   Click image for larger version

Name:	954front-2.JPG
Views:	16
Size:	48.5 KB
ID:	147424   Click image for larger version

Name:	954front-3.JPG
Views:	15
Size:	54.1 KB
ID:	147425
Old Jul 30, 2005 | 12:26 AM
  #2
hyperryder's Avatar
Registered User

Joined: Sep 2004
Posts: 2,420
From: MD
hyperryder is an unknown quantity at this point
Re: another 954 front end on an f4i question

same size
Old Jul 30, 2005 | 02:17 AM
  #3
Kyle_PBZ's Avatar
2 WHEELS UP!

Joined: Oct 2002
Posts: 6,083
From: So. IL
Kyle_PBZ is a decent person
Re: another 954 front end on an f4i question

As long as they are the same bearing type it should be fine. As in, both ball type or roller type and not one of each.
Old Jul 30, 2005 | 03:59 PM
  #4
Z-UNIT's Avatar
Registered User

Joined: Aug 2004
Posts: 6,124
From: wherever willie is
Z-UNIT is an unknown quantity at this point
Re: another 954 front end on an f4i question

u cant use a f4i triple clamp because the 954 forks are wider at the top
Old Jul 30, 2005 | 05:05 PM
  #5
atnuts's Avatar
Thread Starter
Registered User

Joined: Oct 2002
Posts: 3,995
From: joi-zee
atnuts is an unknown quantity at this point
Re: another 954 front end on an f4i question

Originally Posted by Z-UNIT
u cant use a f4i triple clamp because the 954 forks are wider at the top

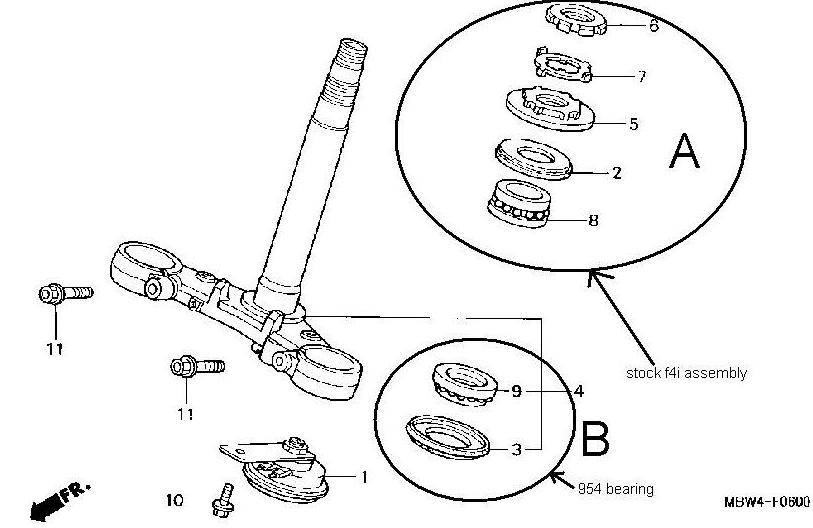

I'm talking about the center stem. here's a pic. circle 'A' is the part I'm talking about. I left that as is. Meaning, I'm using the f4i parts(#6, 7, 5, 2, 8). I just want to know if leaving the f4i parts in will work with the 954 center stem or will there be any play/damage. It seems to fit ok for now. Circle 'B' I'm using the 954 bearing that came with the forks.
Attached Thumbnails Click image for larger version

Name:	f4i_steering_stem.JPG
Views:	14
Size:	56.9 KB
ID:	147492
