So i need some help with canceling out the guages on my 04' 600RR, when i unplug the harness from the guages the bike will turn over but the fuel pump and such does not turn on and the bike will not run, any advice would be much appreciated:YEAH



check the tipover sensor



tip overis already taken care of, im talking about the actualy harness with the headlight plugs turn signal plugs and the big gray and blue plugs, just alot of mess to hide , id post apic but for some reason i cant use html code to do so



ok.. with hondas u need to jump the harness.. i don't know exactly which wires on the 600rr, talk to wheeliest, he'll tell u.. pm him



all i did was unplug it ....and i didnt have the left contols plugged in either...if that helps.......



Mmmhmm i'll post it alittle later tonight what wires to jump on the main harness when i get home.



i had the fan unplugged 2......... never jump no wires except the red and green on tip over switch.......hmmmmmmmmmhmhmhm



hes Unpluggin the entire headlight harness on the left side, that two large harness blocks... which jumping the reg tip wires is pointless since its no longer connected etc..



you still riding the streets?



i get my license back in nov. i know i know im a ***** but i haven't had it in 3 years!

so no



where the hell was that question 2 1/2 months ago when i had my f4i

http://media.putfile.com/jstuntshc

http://media.putfile.com/jstunthc



ok so yeah heres what i promised, now remember to match up the colors on the harness, like pay attention what colors are near the green wire so your looping the correct wires.

Connect the R/W (Red & White) to the G (Green)



ohhhhhhhhhhhhhhhh i c minus the whole harness....... why just not tuck it in the air box or hide it......... or jump the wires.........



I didn't have to jump anything on my harness interesting just unplug and enjoy oh after reading more I understand what your doing



why run the entire headlight harness when u can just jump these two and tuck just these into the airbox..



so u can leave out the plug to plug your guage in if ur bikes acting funny...

600rr overheat if u dont have dual fans...... if it dont now it will..........just nice to have that option......................



so what your saying is cut all the wires and just connect the green to the red and white and viola that will complete the cirlce of contenuity



dont cut anything, just connect those two wires together and tuck the harness into your airbox

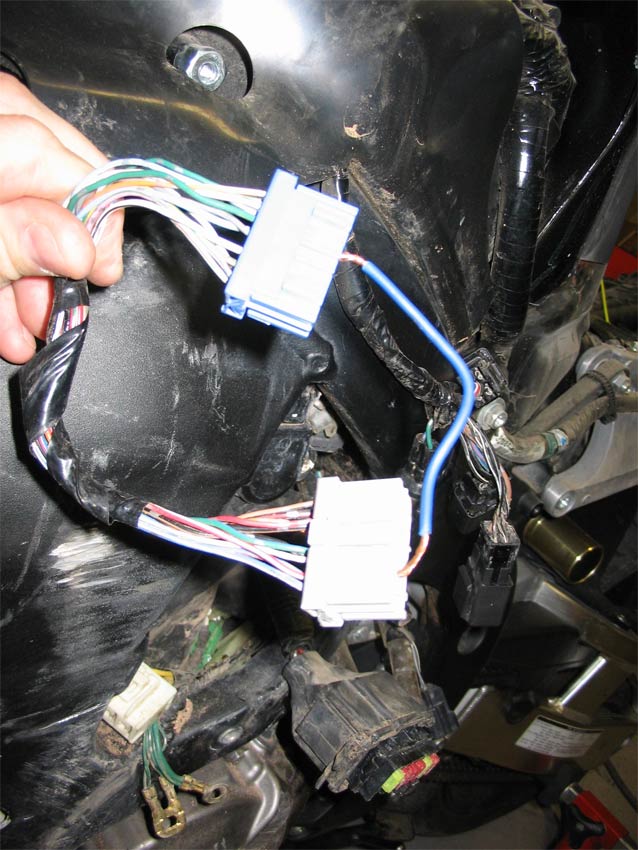

here ya go
