making a f4i stunt ready whats the best mods?
Registered User
Joined: Jun 2004
Posts: 1,057
From: CT
Re: making a f4i stunt ready whats the best mods?

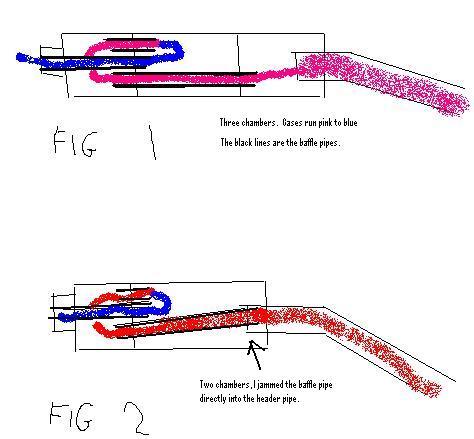

Here is what I did. Check out my awesome abilities in paint.
Basically I eliminated one chamber.
Oh yeah, i cut the pipe just in front of the footpeg bracket, and then skinned off what I needed, then jammed everything back together. Don't chop through the entire pipe, just the outer chrome piece. Once that is pulled away, you then trim back the inner cheese grater lookin muffler deally, so that it all fits together.
Basically I eliminated one chamber.
Oh yeah, i cut the pipe just in front of the footpeg bracket, and then skinned off what I needed, then jammed everything back together. Don't chop through the entire pipe, just the outer chrome piece. Once that is pulled away, you then trim back the inner cheese grater lookin muffler deally, so that it all fits together.
Last edited by skinnyR!; Apr 17, 2006 at 06:53 PM.
Registered User
Joined: Oct 2004
Posts: 3,983
From: England, UK
Re: making a f4i stunt ready whats the best mods?
hmmm weird because I don't even have that long pipe chamber pipe... Where I've cut it theres about 10" of nothingness! All I was gonna do is cut 5" off and not touch any of the chambers as they are all up the other end.. ah well guess I'll just have to do it and see what it sounds like
Thread Starter
Registered User
Joined: Dec 2005
Posts: 1,648
Re: making a f4i stunt ready whats the best mods?
looks cool man we want pics tho
i managed to cut 8 inches out and its still quiet
skinny R how much did u lose?
sparks u just gota do it ur own way i reckon when u get it in bits
i managed to cut 8 inches out and its still quiet
skinny R how much did u lose?
sparks u just gota do it ur own way i reckon when u get it in bits
Registered User
Joined: Jun 2004
Posts: 1,057
From: CT
Re: making a f4i stunt ready whats the best mods?
Originally Posted by ALSTAR
looks cool man we want pics tho
i managed to cut 8 inches out and its still quiet
skinny R how much did u lose?
sparks u just gota do it ur own way i reckon when u get it in bits
i managed to cut 8 inches out and its still quiet
skinny R how much did u lose?
sparks u just gota do it ur own way i reckon when u get it in bits
Registered User
Joined: Nov 2004
Posts: 2,277
From: South of Boston, 781
Re: making a f4i stunt ready whats the best mods?
Originally Posted by Sparks!
I don't get why you gotta touch the outlet side of the pipe?? and mess about bending the inner pipe??
I cut the header pipe end off my stock can today and will cut the main body about 5" off and then just weld it back together and move the bracket
seems no hassle at all but is that all I need to do?? seems like it to me??
I cut the header pipe end off my stock can today and will cut the main body about 5" off and then just weld it back together and move the bracket
seems no hassle at all but is that all I need to do?? seems like it to me??the point of cutting both ends is to keep most of the packing area in each chamber to keep it as quiet as possible.
like I said earlier... on my latest project pipe I left the rear end of the can untouched.
I cut both the lower can body (about 3in), AND the 2 1/2 inches of straight pipe going into the can itself to get the best length reduction and keep most of the chamber.
AZ's Finest!
Joined: Jan 2005
Posts: 4,227
From: AZ streets
Re: making a f4i stunt ready whats the best mods?
Originally Posted by ALSTAR
ok
heres mine not finished but getting there
hope it helps people if they wana try
i cut both ends off and kept all 3 cambers
used a hack saw to take the end cap off/out let off
and left the internal out let pipe as long as pos
and cut the other end as well both ends were cut just on the main body side of the welds
so with both ens off then cut/grind the hanger off
i chose my size as the width of a A3 sheet of papper
witch also gives u straight end to scribe into the steel
the edge off my cut was on the end cap side of a small box stamped into the can
near the honda logo
also havent had to mess with the internal pipe work:YEAH
except u got heat and bend the out let pipe down a little
heated mine with BBQ coals and a air line
i bent it till there was 3mm gap between the 2 main pipes
a good find was the way the end cap is made it comes apart into 2
place it over a off cut from the chromed can just i skin and hit it out
there a drain hole as well that help with leverage
and u can take out whats left of the old out let pipe and re use it latter to give u a gas tight 3 cambered seal we all hope
the hole is off center and helps to line up when u re assemble it
u place the this piece back over the internal out let pipe witch u bent a little with some hamering and adjusting
and weld round the internal out let pipe as it was before u grond/cut it off
then put the chromed S/S end cap over the top use a rubber hammer
should if ur cuts where straight weld it up with stainless steel rods
started welding it back up today i gota clean up my weld with a grinder
file and polish cos i s**k at welding i got lot of repect for thos who can
to be continude:
heres mine not finished but getting there
hope it helps people if they wana try
i cut both ends off and kept all 3 cambers
used a hack saw to take the end cap off/out let off
and left the internal out let pipe as long as pos
and cut the other end as well both ends were cut just on the main body side of the welds
so with both ens off then cut/grind the hanger off
i chose my size as the width of a A3 sheet of papper
witch also gives u straight end to scribe into the steel
the edge off my cut was on the end cap side of a small box stamped into the can
near the honda logo
also havent had to mess with the internal pipe work:YEAH
except u got heat and bend the out let pipe down a little
heated mine with BBQ coals and a air line
i bent it till there was 3mm gap between the 2 main pipes
a good find was the way the end cap is made it comes apart into 2
place it over a off cut from the chromed can just i skin and hit it out
there a drain hole as well that help with leverage
and u can take out whats left of the old out let pipe and re use it latter to give u a gas tight 3 cambered seal we all hope
the hole is off center and helps to line up when u re assemble it
u place the this piece back over the internal out let pipe witch u bent a little with some hamering and adjusting
and weld round the internal out let pipe as it was before u grond/cut it off
then put the chromed S/S end cap over the top use a rubber hammer
should if ur cuts where straight weld it up with stainless steel rods
started welding it back up today i gota clean up my weld with a grinder
file and polish cos i s**k at welding i got lot of repect for thos who can
to be continude:
Thread Starter
Registered User
Joined: Dec 2005
Posts: 1,648
Re: making a f4i stunt ready whats the best mods?
ur welcome mate
so started the bar and under tail
i had a bit to do as i mounted a f4i tail on the f4 sub frame
ok so find some thick metal
cut and mount and mark and drill into the strongest part of thr sub frame u can find
i did mine very close to the honda welds
and shaped filed other welds to help suport the bar
bolt it together
started a under tray to match as i aint got one at all !
beat it out to a shape with heat and a ruber hamer jim bob
and cut out a plate holder with some help from my little buddie" stunt dog "
as u can see he is inspecting the cuts for me.
to be continude........................
so started the bar and under tail
i had a bit to do as i mounted a f4i tail on the f4 sub frame
ok so find some thick metal
cut and mount and mark and drill into the strongest part of thr sub frame u can find
i did mine very close to the honda welds
and shaped filed other welds to help suport the bar
bolt it together
started a under tray to match as i aint got one at all !
beat it out to a shape with heat and a ruber hamer jim bob
and cut out a plate holder with some help from my little buddie" stunt dog "
as u can see he is inspecting the cuts for me.
to be continude........................
