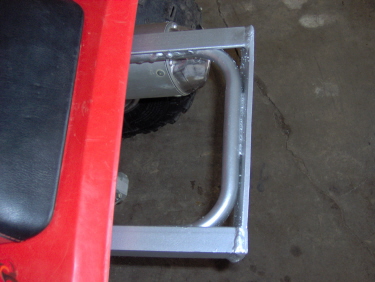

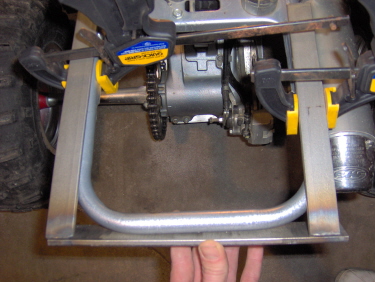

This is how I'm trying to make mine. Different from what I've seen. If it comes out right I'll make a few. I figure it will be strong as hell fit perfect all 400ex just weld it on. It will come all the way to the crossmember and support it there too. I don't know if stainless was the way to go but we'll see. i can cut it off and youll never know it was there if I sell it.

Easy cheesey

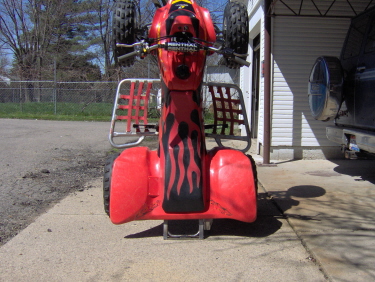

Pic 2 I didn't clamp that straight it lines up.

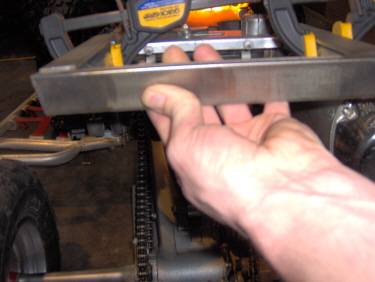

I hoisted the quad up to the rafters got the angle marked on the correct

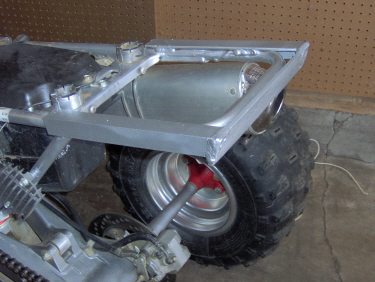

side and cut it. I'll weld it up tomorrow. Looks with the seat on.

Those who know this stuff correct me if somthing looks wrong.

Thanks for readin my thread.



I'm no expert but I have made a few 12 bars in my day and judging from the pics you will crash if you hit that 12 bar in anything above mid 2nd. You have too much of an angle on that plat and it will not scrpae evenly, meaning just the rear of it will scrape. Your gonna want to have at least 80% of that plate scraping. Looks good so far though.



looks good



sorry jimmah is right you should take a little angel off that.



You guy's are right thanks !! ...................DONE!!!!!! :YEAH

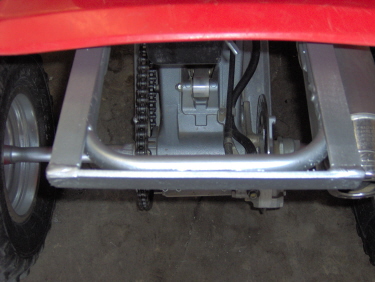

I hoysted it and welded it up in the air and got it PERRRRFECT. FLUSH with the level Pavement.
Thanks what you think !!!! :YEAH



thats :YEAH



maybey put a thicker plate on?



Thanks man ( dislocated my arm pattin myself on the back )



yea, i hafta agree.. once you use it a few times, and you are satisfied with the angle, I think (if i were you) i would weld a bigger plate on it... my ...
Looks good tho... much better than the monstrosity I have hanging off my sub-frame...lol Looks like a rack should bolt to it... lol



I'll have to see how it wears, I'ts pretty thick Stainless. I can always slap another plate on.
I'm going to make a couple more. One for the yellow bike too.
Maybee I'll put a thicker one on the next one.

thanks for the input !!

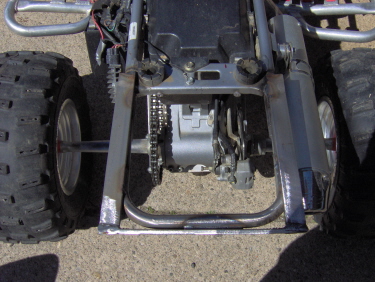

I realy think I'm done with it now. touched it up with a little paint after I went riding this morning.!!

Looks good I think

Thanks again for all the help guys
going to go scrape it up. :YEAH maybee start on another one.



looks good to me man.. lets get some action pics...



BET.....



If you're gonna go stainless, might as well do titanium. Just kiddin. Looks good though. Did you mig that or tig? Nice welds too.



i need one of those on mine



Tig......mig..........depresion.....recesion...... I'ts all the same thing

just kidding .........Mig.



looks great! i am making one myself, what angle do you think i should put on the end of it?



looks great! i am making one myself, what angle do you think i should put on the end of it?



measure and weld the whole thing with it hoisted up so you get the angle perrrfect.

It was somewhere around 80
