k7 secondary butterfly mod
05-11-2011, 03:51 PM
#3
FYF
Join Date: Jun 2006
Location: stuntshine state
Posts: 1,946
Re: k7 secondary butterfly mod

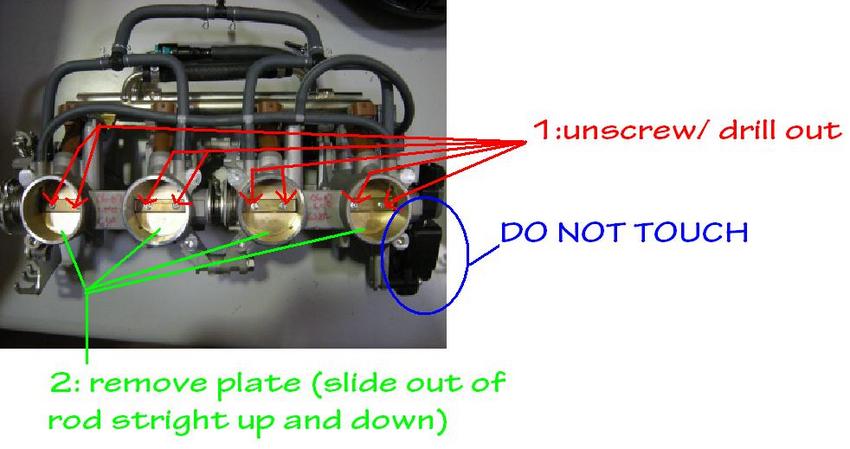

take off airbox, remove throttle bodies, pull the circular discs of the top row (two small phillips screws per plate (for plates total) drill out screws once you strip the little bastards and then put it all back in the bike and GO.
DO NOT REMOVE THE STVA black actuator box when doing this (it is spring loaded and will throw an FI code if fucked with) leave the rod in, just remove the plates. That's it
DO NOT REMOVE THE STVA black actuator box when doing this (it is spring loaded and will throw an FI code if fucked with) leave the rod in, just remove the plates. That's it
05-12-2011, 09:40 AM
#4
Registered User
Thread Starter
Join Date: Feb 2011
Location: ohio
Age: 30
Posts: 322
Re: k7 secondary butterfly mod
take off airbox, remove throttle bodies, pull the circular discs of the top row (two small phillips screws per plate (for plates total) drill out screws once you strip the little bastards and then put it all back in the bike and GO.
DO NOT REMOVE THE STVA black actuator box when doing this (it is spring loaded and will throw an FI code if fucked with) leave the rod in, just remove the plates. That's it
DO NOT REMOVE THE STVA black actuator box when doing this (it is spring loaded and will throw an FI code if fucked with) leave the rod in, just remove the plates. That's it
