Old 07-17-2010, 04:48 PM   #21
Registered User

j-dane's Avatar

Join Date: Jul 2006
Location: Woodland Hills, CA
Age: 34
Posts: 47
j-dane is an unknown quantity at this point
Re: how to toggle switch your f4i ignition...

pix please
j-dane is offline   Reply With Quote
Old 01-15-2011, 02:45 PM   #22
Registered User

cisco5311's Avatar

Join Date: Nov 2006
Location: NE OHIO
Age: 34
Posts: 518
cisco5311 is an unknown quantity at this point
Re: how to toggle switch your f4i ignition...

I got mine wired up, here are some pics of the supplies and a half assed drawing, hope it helps!

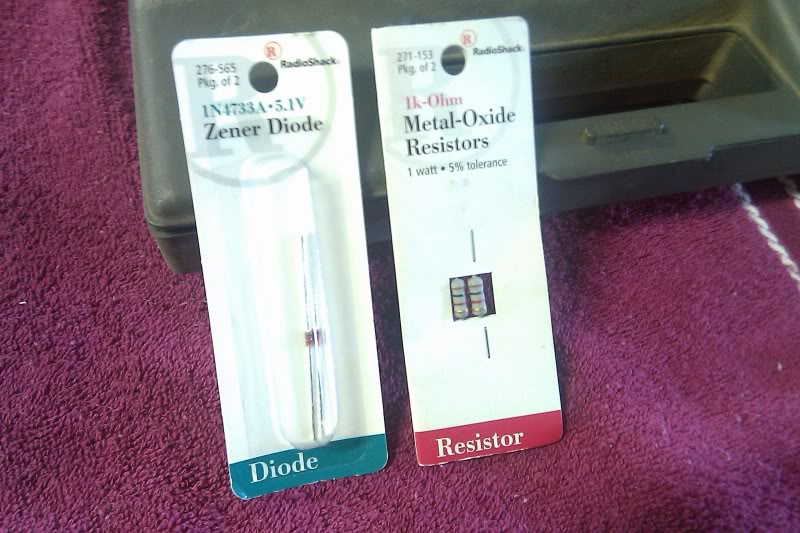

Name:  f4i7.jpg
Views: 1748
Size:  90.9 KB

Name:  f4i6.jpg
Views: 1862
Size:  81.7 KB

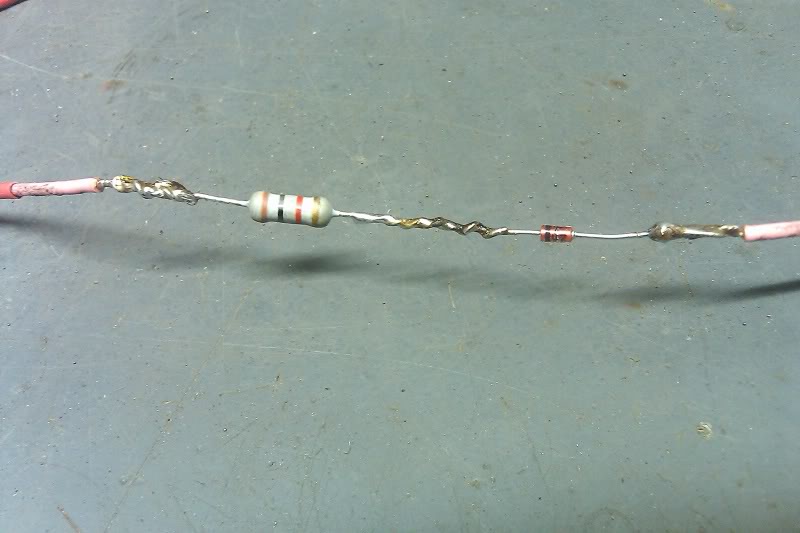

Name:  f4i10-1.jpg
Views: 1675
Size:  44.2 KB

Name:  f4i9.jpg
Views: 1757
Size:  44.3 KB

Name:  f4i1.jpg
Views: 1841
Size:  23.3 KB
cisco5311 is offline   Reply With Quote
Old 02-19-2011, 01:42 PM   #23
Registered User

Join Date: May 2008
Location: slc, ut. usa
Posts: 24
cbrrrrrrrr is a decent person
Re: how to toggle switch your f4i ignition...

I cant seem to get this to work. i ran the wires from the harness directly to the toggle with the zener diode and resistor in there. why do you have the ignition pictured in the drawing?? is the toggle in line running to the ignition or something?
cbrrrrrrrr is offline   Reply With Quote
Old 02-21-2011, 12:39 AM   #24
Registered User

cisco5311's Avatar

Join Date: Nov 2006
Location: NE OHIO
Age: 34
Posts: 518
cisco5311 is an unknown quantity at this point
Re: how to toggle switch your f4i ignition...

No, it's there to show how to set up either one, I wired mine so I could still use the ignition, I just stuffed it in the airbox.

Make sure you've got the BAS (bank angle sensor), clutch switch, and kickstand in order or she won't fire up.
cisco5311 is offline   Reply With Quote
Old 10-29-2011, 04:34 PM   #25
Registered User

kidstunta's Avatar

Join Date: Sep 2004
Location: Augusta GA
Age: 32
Posts: 565
kidstunta is an unknown quantity at this point
Re: how to toggle switch your f4i ignition...

Sorry to bring up an old thread, but worked like a charm!!!
kidstunta is offline   Reply With Quote
Old 03-21-2012, 08:28 AM   #26
Registered User

Join Date: Mar 2012
Age: 28
Posts: 1
Seansr08 is a decent person
Re: how to toggle switch your f4i ignition...

I just did this mod on my Cbr 600f4i powered atv that had a bad diode. I still can't get the fuel pump relay to turn on and prime, pink wire is getting 6.3v to the ecu. What is the voltage suppose to be? Thanks
Seansr08 is offline   Reply With Quote
Old 04-02-2012, 12:47 PM   #27
Registered User

Join Date: Mar 2012
Location: st.louis missouri
Age: 30
Posts: 9
STL★SHOWOFF is a decent person
Re: how to toggle switch your f4i ignition...

ive been tryin to figure out how to hook a toggle switch up to my 08 zx6 but i cant quite get it.. if you could be of any help i would apricate it..
STL★SHOWOFF is offline   Reply With Quote
Old 04-02-2012, 02:14 PM   #28
Registered User

Join Date: Mar 2012
Location: st.louis missouri
Age: 30
Posts: 9
STL★SHOWOFF is a decent person
Re: how to toggle switch your f4i ignition...

dose anyone know how to hook up a toggle switch to a 2009 zx6??
STL★SHOWOFF is offline   Reply With Quote
Old 08-20-2012, 12:24 PM   #29
Registered User

Join Date: Aug 2012
Location: Sherman, TX USA
Posts: 1
yamaracer is a decent person
Re: how to toggle switch your f4i ignition...

you show the zener diode in the stock ignition in its factory location in the pictures you have posted are you leaving in in there while your running the diode and resistor in a series on the pink wire?
yamaracer is offline   Reply With Quote
Old 04-11-2014, 11:57 AM   #30
Registered User

iamjustme's Avatar

Join Date: Feb 2013
Location: riverside CA
Posts: 8
iamjustme is a decent person
Re: how to toggle switch your f4i ignition...

2014 and this **** was super helpful. Thanks. before

finding this post After to you my friend!
iamjustme is offline   Reply With Quote
Old 10-28-2014, 09:15 PM   #31
Registered User

Join Date: Sep 2012
Location: Tallahassee,fla,usa
Posts: 9
KiLLnTheStreet is a decent person
Re: how to toggle switch your f4i ignition...

I have this setup on my f4i with a ebay ignition that didnt come with a diode or resistor and the bike still isnt getting spark or fuel from the pump what else could it be now?
KiLLnTheStreet is offline   Reply With Quote
Old 10-28-2014, 09:20 PM   #32
Registered User

Join Date: Sep 2012
Location: Tallahassee,fla,usa
Posts: 9
KiLLnTheStreet is a decent person
Re: how to toggle switch your f4i ignition...

Will this not work if its not soldered because I just twisted the wires to the diodes and resistor? I was for sure this would work, I can get the pump to click on if I hot wire it straight to the battery but it wont click on
KiLLnTheStreet is offline   Reply With Quote
Old 11-14-2014, 10:48 PM   #33
Registered User

Join Date: Sep 2012
Location: Tallahassee,fla,usa
Posts: 9
KiLLnTheStreet is a decent person
Re: how to toggle switch your f4i ignition...

Sorry to keep posting on an old thread. But I finally got it. If any one needs help pm me or rply with post ... rhanks a **** ton by the way rich... big *** help bike hadnt crunk in 2 yrs before I found this thread
KiLLnTheStreet is offline   Reply With Quote
Old 12-28-2015, 02:55 PM   #34
Registered User

Join Date: Dec 2015
Age: 26
Posts: 1
Otownstunter is a decent person
Re: how to toggle switch your f4i ignition...

Quote:
Originally Posted by KiLLnTheStreet View Post
Sorry to keep posting on an old thread. But I finally got it. If any one needs help pm me or rply with post ... rhanks a **** ton by the way rich... big *** help bike hadnt crunk in 2 yrs before I found this thread
Hey man I just tried this setup on my 04 f4i and my fuel pump isn't coming on.. Would greatly appreciate any help.
Otownstunter is offline   Reply With Quote
Old 03-23-2016, 12:40 AM   #35
Registered User

Join Date: Mar 2016
Age: 38
Posts: 2
Jeremy26 is a decent person
Re: how to toggle switch your f4i ignition...

Quote:
Originally Posted by richd3000 View Post
some one sticky this please...

so i got it togeather finally. radioshack got the (5.1 zener diode) and the (1 watt 1k ohm 5% resistor) you need. the ignition consists of four wires. ones the constant 12v, two go to the junction box(fuses), and then theres that damned pink wire. well i ran a 30amp toggle switch with on side going to the 12v wire and the other side going to the two junction box wires and an extra one hanging that i will conect to the pink...
now take that wire from the toggle and connect it to the zener diode, than take the black ring side of the zener and connect it to the resistor, than take the brown ring side of the resistor and connect it to the pink wire. make sure you solder and tape everthing nice and clean! put the bike back to geather and flip on the toggle and youll hear that sweet sound of that fuel pump priming!!! need any help pm me. and if you plan to use this info to steal a bike your a complete douch bag and i hope someone shoots you. well back to the lab for me, got some motor swappin to do.
Jeremy26 is offline   Reply With Quote
Old 03-23-2016, 12:41 AM   #36
Registered User

Join Date: Mar 2016
Age: 38
Posts: 2
Jeremy26 is a decent person
Re: how to toggle switch your f4i ignition...

Quote:
Originally Posted by richd3000 View Post
some one sticky this please...

so i got it togeather finally. radioshack got the (5.1 zener diode) and the (1 watt 1k ohm 5% resistor) you need. the ignition consists of four wires. ones the constant 12v, two go to the junction box(fuses), and then theres that damned pink wire. well i ran a 30amp toggle switch with on side going to the 12v wire and the other side going to the two junction box wires and an extra one hanging that i will conect to the pink...
now take that wire from the toggle and connect it to the zener diode, than take the black ring side of the zener and connect it to the resistor, than take the brown ring side of the resistor and connect it to the pink wire. make sure you solder and tape everthing nice and clean! put the bike back to geather and flip on the toggle and youll hear that sweet sound of that fuel pump priming!!! need any help pm me. and if you plan to use this info to steal a bike your a complete douch bag and i hope someone shoots you. well back to the lab for me, got some motor swappin to do.
Hey I had a couple questions about the key ignition I got an after market 2 wire ignition and was wondering if I can hook it to my 4 wire on the 2000 honda cbr600
Jeremy26 is offline   Reply With Quote
Old 03-23-2016, 01:41 PM   #37
Registered User

Join Date: Mar 2016
Location: San Jose
Age: 54
Posts: 2
Jim Davis is a decent person
Re: how to toggle switch your f4i ignition...

Quote:
Originally Posted by frekeyguy View Post
would you guys be intrested in a prefabbed ignition switch???
How much ive a 1998 gsxr 600 can u do it???!
Jim Davis is offline   Reply With Quote
Old 03-23-2016, 01:48 PM   #38
Registered User

Join Date: Mar 2016
Location: San Jose
Age: 54
Posts: 2
Jim Davis is a decent person
Re: how to toggle switch your f4i ignition...

Well thanks for your experience and good enginuity mechanic skills im going to solder me a diode on go ride my gsxr 600 bro good info man
Jim Davis is offline   Reply With Quote
Old 08-19-2017, 03:14 PM   #39
Registered User

Join Date: Aug 2017
Location: arkansas
Age: 27
Posts: 2
Khayes600 is a decent person
Re: how to toggle switch your f4i ignition...

Quote:
Originally Posted by KiLLnTheStreet View Post
Sorry to keep posting on an old thread. But I finally got it. If any one needs help pm me or rply with post ... rhanks a **** ton by the way rich... big *** help bike hadnt crunk in 2 yrs before I found this thread

what did you do bro?
I got a 02 cbr600 F4i and it has eBay ignition. I was reading on a different forum that a zener diode 3.9 1w is the correct one. That way you don't need a resistor.

Should i just get the zener diode and resistor?
Khayes600 is offline   Reply With Quote
Old 04-16-2018, 11:02 PM   #40
Registered User

Join Date: Apr 2018
Age: 34
Posts: 1
Eduardo e is a decent person
Re: how to toggle switch your f4i ignition...

Quote:
Originally Posted by cisco5311 View Post
I got mine wired up, here are some pics of the supplies and a half assed drawing, hope it helps!

Attachment 251174

Attachment 251175

Attachment 251176

Attachment 251177

Attachment 251178
Im sorry i have a problem no spark on my f4i 2001it was working fine untill i put a new battery ,anyone knows how can i chek whats wrong ,thanks
