05-06 zx6 db bars?
05-08-2008, 06:08 PM
#1
Registered User
Thread Starter
Join Date: Apr 2008
Location: four four ohhh
Posts: 38
05-06 zx6 db bars?
anyone running a set on an 05 zx6r with the stock triple clamps?

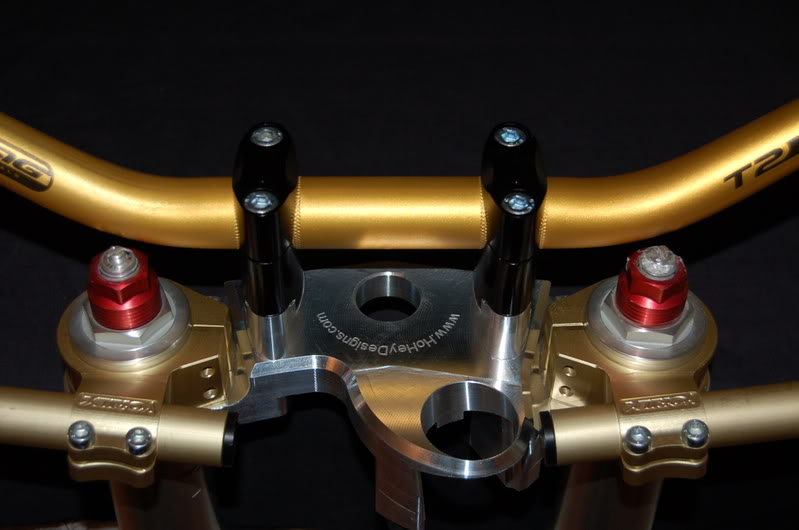

i think hohey makes a new clamp but it wont let me look at the products online so i have no way of even getting one.
if you have one on your stock clamps pls post some pics
thank you
i think hohey makes a new clamp but it wont let me look at the products online so i have no way of even getting one.
if you have one on your stock clamps pls post some pics
thank you
05-08-2008, 06:27 PM
#2
use code "handy" 4 magura
Join Date: Mar 2007
Location: StuntSteel.com - Claymont, DE
Posts: 1,319
Re: 05-06 zx6 db bars?
i have a used set of tag t2's in red for sale.
have the hohey parts too...
__________________
www.stuntsteel.com
have the hohey parts too...
__________________
www.stuntsteel.com
05-09-2008, 07:42 AM
#5
Registered User
Join Date: Aug 2004
Location: Berlin, CT
Age: 39
Posts: 243
Re: 05-06 zx6 db bars?
im looking for an answer to the same question right now, the 03-04 clamps wont fit due to the fact the the stem size hole is too small on the 03-04 clamp to fit on the 05-06 stem, im at work now and going to try and bore the stem hole out on a bridgeport to 1.1 inchs witch is the O.D. size of the 05-06 stem, the size of the 03-04 clamp is .984 witch isnt that big of a change. it looks like the clamp will line up stright just the the hole is to small
if anyone has any insight on this before i do it let me know so i dont **** up a mint 03 clamp for no reason, only reason im doing it is because i dont have 225 bucks to drop on a hohey at this point
o and i forgot, im pretty sure also putting holes in the 05-06 clamp were the stock triangle things are, are not good enough the metal is too thin there and that the way that its shaped will not be strong enough just my 2cents but then again i dont know either becuase i cant find any info on this subject
if anyone has any insight on this before i do it let me know so i dont **** up a mint 03 clamp for no reason, only reason im doing it is because i dont have 225 bucks to drop on a hohey at this point
o and i forgot, im pretty sure also putting holes in the 05-06 clamp were the stock triangle things are, are not good enough the metal is too thin there and that the way that its shaped will not be strong enough just my 2cents but then again i dont know either becuase i cant find any info on this subject
Last edited by CT Mike; 05-09-2008 at 07:46 AM. Reason: forgot somthing
05-09-2008, 10:15 AM
#6
awww **** motorcycles!
Join Date: Oct 2002
Location: FL
Age: 42
Posts: 2,973
Re: 05-06 zx6 db bars?
im looking for an answer to the same question right now, the 03-04 clamps wont fit due to the fact the the stem size hole is too small on the 03-04 clamp to fit on the 05-06 stem, im at work now and going to try and bore the stem hole out on a bridgeport to 1.1 inchs witch is the O.D. size of the 05-06 stem, the size of the 03-04 clamp is .984 witch isnt that big of a change. it looks like the clamp will line up stright just the the hole is to small
if anyone has any insight on this before i do it let me know so i dont **** up a mint 03 clamp for no reason, only reason im doing it is because i dont have 225 bucks to drop on a hohey at this point
o and i forgot, im pretty sure also putting holes in the 05-06 clamp were the stock triangle things are, are not good enough the metal is too thin there and that the way that its shaped will not be strong enough just my 2cents but then again i dont know either becuase i cant find any info on this subject
if anyone has any insight on this before i do it let me know so i dont **** up a mint 03 clamp for no reason, only reason im doing it is because i dont have 225 bucks to drop on a hohey at this point
o and i forgot, im pretty sure also putting holes in the 05-06 clamp were the stock triangle things are, are not good enough the metal is too thin there and that the way that its shaped will not be strong enough just my 2cents but then again i dont know either becuase i cant find any info on this subject
05-09-2008, 11:06 AM
#8
Registered User
Thread Starter
Join Date: Apr 2008
Location: four four ohhh
Posts: 38
Re: 05-06 zx6 db bars?
when i go to the db bars i will not be using a stablizer.
im curently sitting at work going to be attempting to drill out the 03 clamps. wish me luck, i hope it works
im curently sitting at work going to be attempting to drill out the 03 clamps. wish me luck, i hope it works
05-09-2008, 11:23 AM
#9
YUT UGH
Join Date: Feb 2007
Location: Cincinnati, Ohio
Posts: 1,570
Re: 05-06 zx6 db bars?

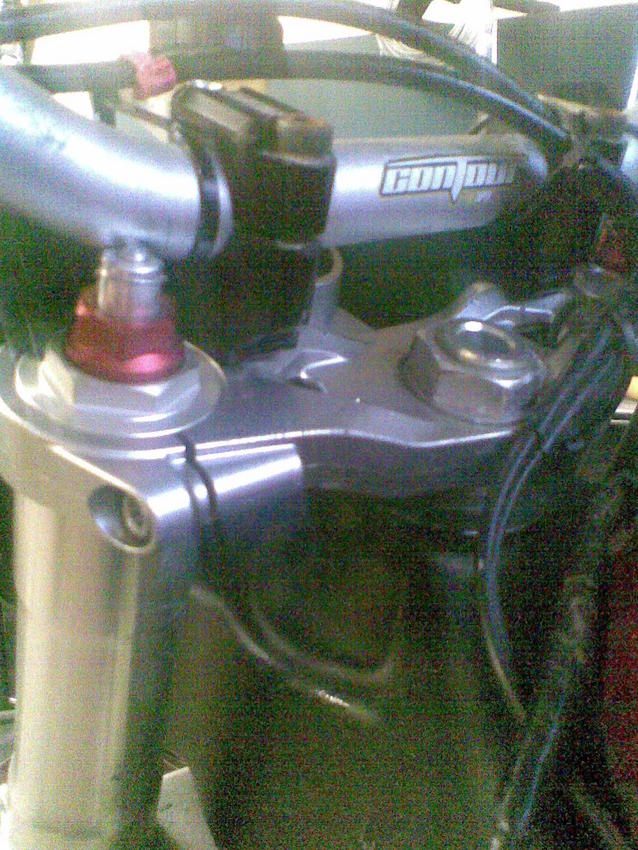

just drill the holes on the top part above the stock holes, thats what my buddy did just make sure the bend of the bars dont hit the tops of the forks, mess with it before you drill they almost need to mount right at the very edge, and you;ll need to move your ignition
ill try to get pics
ill try to get pics
05-09-2008, 02:26 PM
#12
Thread Killer!!!
Join Date: Jan 2005
Location: kosciusko, MS
Age: 47
Posts: 1,479
Re: 05-06 zx6 db bars?
I had the same question when I did my 636. I ended up using a billet top clamp I got from ATLFreestyle that was supposed to fit the 03-04. I just drilled out the stem and it worked great.
I do remember seeing pics of A.C. Farias's bike at stuntwars and he was still using the stock tripple and I think Scarygary was too on his.
It looked like they ran through the stock holes with plastic spacers but I couldn't see well enough to make out what they really had.
Just flip the stock clipons and turn them out and you'll love em. I had Mx bars but went back to clipons after a short time and I usually love Mx bars.
I do remember seeing pics of A.C. Farias's bike at stuntwars and he was still using the stock tripple and I think Scarygary was too on his.
It looked like they ran through the stock holes with plastic spacers but I couldn't see well enough to make out what they really had.
Just flip the stock clipons and turn them out and you'll love em. I had Mx bars but went back to clipons after a short time and I usually love Mx bars.
05-09-2008, 02:33 PM
#13
Registered User
Join Date: Aug 2004
Location: Berlin, CT
Age: 39
Posts: 243
Re: 05-06 zx6 db bars?
done... used a 1 7/64 drill bit to bore the hole out and 1 1/8 to make the slight angle on the top and bottoms of the holes and works fine, just need to drill the holes for the tag mounts and its done
05-10-2008, 04:10 AM
#16
Registered User
Thread Starter
Join Date: Apr 2008
Location: four four ohhh
Posts: 38
Re: 05-06 zx6 db bars?
so gangster but its not letting me view anything on your site.
i tried boring the 03-04 clamps and my f*cking but is super dull so im gonna try and drill the smaller holes in the stock one. if it dont work ill either buy the hohey or try getting a better bit to drill the 03 clamps
i tried boring the 03-04 clamps and my f*cking but is super dull so im gonna try and drill the smaller holes in the stock one. if it dont work ill either buy the hohey or try getting a better bit to drill the 03 clamps
Last edited by megliss; 05-10-2008 at 04:14 AM.
05-10-2008, 01:06 PM
#20
Registered User
Join Date: Jul 2007
Location: Mankato, MN
Posts: 65
Re: 05-06 zx6 db bars?

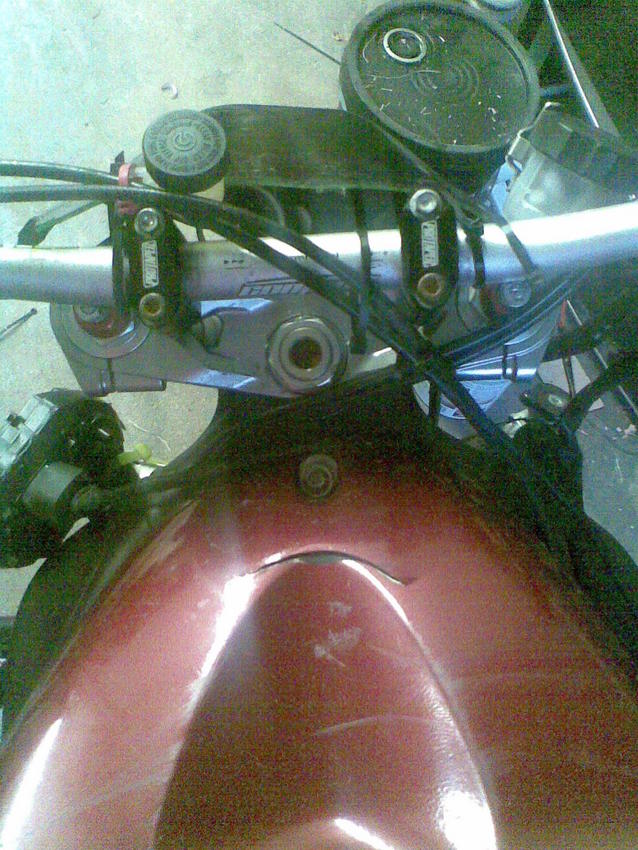

I'm a huge tool!!!!!!!!! but it's raining and this is the only pic I have of my tank.. super clean, done by X Rated Freestyle down by Tulsa, OK
p.s. this was taken with my phone.. pretty sick huh
p.s. this was taken with my phone.. pretty sick huh
Last edited by Wipeout; 05-10-2008 at 01:10 PM.
