Cutting down a Micron pipe

Anybody ever cut one of these down? It's a carbon fiber pipe, but there's no rivets or anything on the ends??? Haven't taken it apart yet. Just wanted to know if anyone has shortened a Micron pipe, and how they did it???
Old Jul 23, 2006 | 12:34 PM
  #2
kj's Avatar
kj
Registered User

Joined: Nov 2004
Posts: 2,277
From: South of Boston, 781
kj is an unknown quantity at this point
Re: Cutting down a Micron pipe

yes i have... Microns are a little more involved than riveted slipons... I had to have it re-welded because the core holds everything together... but here's the basics.

Take the end cap off (theres a small hex screw inside the outlet), then cut desired inches off of the core. Make sure to mark the core so the welder can put it back together in correct position... if not, the screw in the endcap won't line up and the pipe will fall apart.

Cut the EXACT same ammt off of the sleeve. It's gotta be the same length or the sleeve will either be too lose or not fit back on. Have the core welded, then pop the end cap back on and put the screw back. Done.

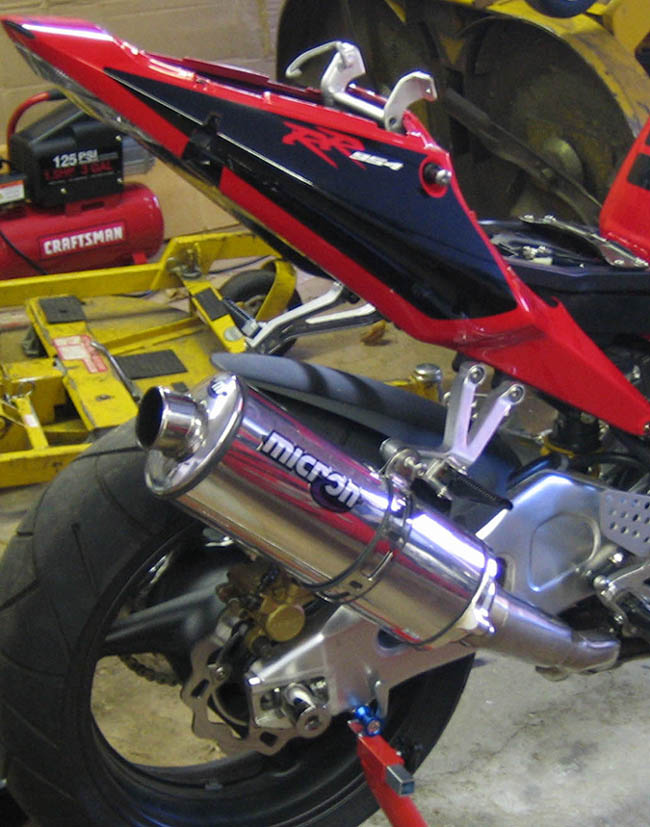

Attached Thumbnails Click image for larger version

Name:	9 004.jpg
Views:	48
Size:	97.5 KB
ID:	176119   Click image for larger version

Name:	10 060.jpg
Views:	52
Size:	86.7 KB
ID:	176120
Old Jul 23, 2006 | 12:51 PM
  #3
Brian V's Avatar
Thread Starter
Registered User

Joined: Oct 2003
Posts: 3,057
From: K-Town/Zion IL.
Brian V is an unknown quantity at this point
Re: Cutting down a Micron pipe

Well.... That took the mystery out of it! Thanks bro.
Old Jul 24, 2006 | 05:26 AM
  #4
stuntnda929's Avatar
Registered User

Joined: Dec 2005
Posts: 331
From: hollidaysburg, pa
stuntnda929 is an unknown quantity at this point
Re: Cutting down a Micron pipe

yeah we did my boys and it ****in sucked cuz i had to weld it back but sounds great
Old Jul 24, 2006 | 09:53 AM
  #5
Brian V's Avatar
Thread Starter
Registered User

Joined: Oct 2003
Posts: 3,057
From: K-Town/Zion IL.
Brian V is an unknown quantity at this point
Re: Cutting down a Micron pipe

Mine turned out bad-*ss!!! sounds killer!
