i need some info on this swap, the motor is an 02 and the 600 is an 02 . Any info would be great.



I just did it, what you have to do is get a machinist to cut and reweld the front frame mounts up and more forward to fit the 750. What I did was put the engine in with the bottom too mounting points and let the welder just relocate the tabs while the engine was still in the frame so that he knows the exact location of the hole. Good luck, make sure you have the whole other wire harness, and computer to make it work.



That's one way to jip insurance



Do just like bunarocket says.. I have done the same thing and thats exactly what I did when I did mine... Here are some pics to help illustrate the differences...

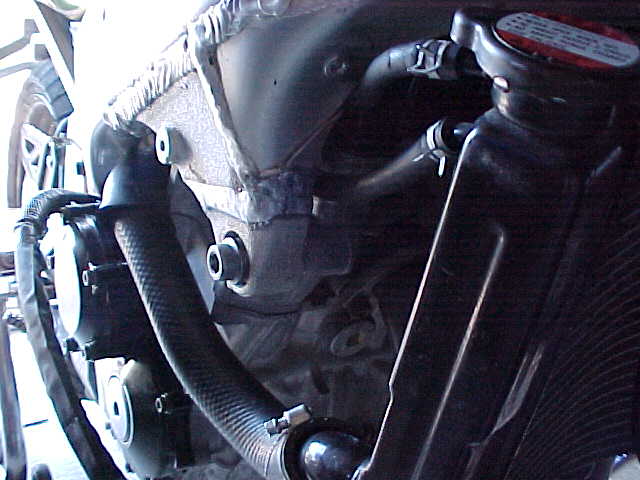

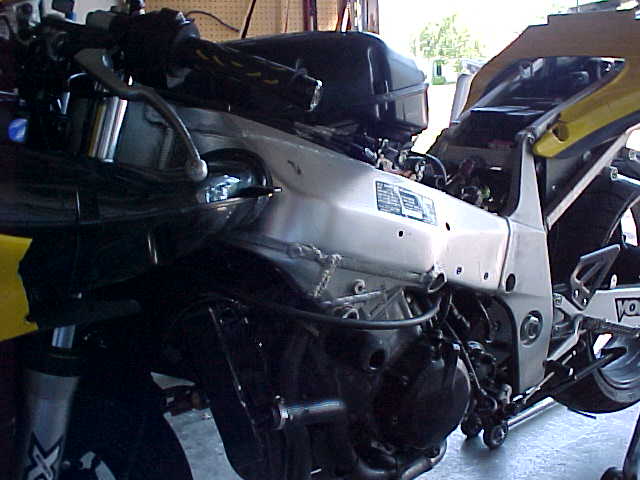

The first two pics show what the stock 600 frame looks like with a 750 motor bolted in. As you can see the front motor mounts are barely off. Once you get the 750 bolted in using the back engine mounts, take it to the shop, have em cut the mounts off, shave em and weld them back on.



heres the right side.

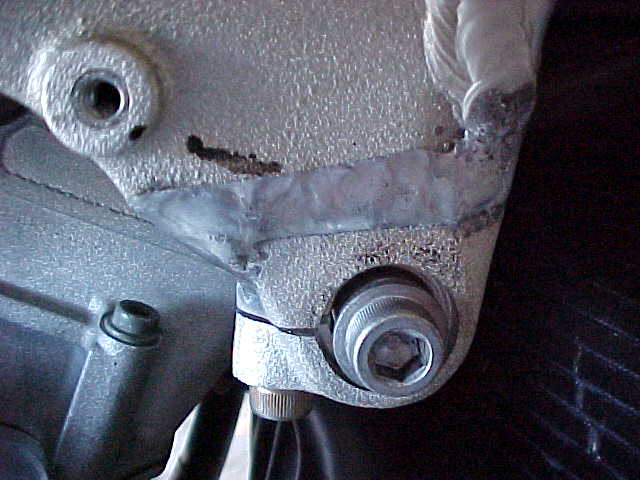

here are the after pics...


left side



left at another angle



oops...



right side



right front angle



Is it the same deal for a 1000 swap in a 750 ?



They make plates to fit the 1000 motor in the 750 without any cutting modifications. Lee Racing I believe out of south carolina???



anyone know the web address to order those?



I've heard the risk of running the 1000 in the 600/750 frame is that being a 1000 bike, it has a beefier frame. Just curious



I'll try and get the address for yall. Hey I got a problem with my 750, look at the other thread under my name.



damn, thats too much work



Did you get that 750 ironed out?

cruisererik, you are right, but all you gotta do is check for cracks every couple weeks and get it welded up if you find any. I dont think its the motor that cracks em its wheelies. Suzuki knows that the 1k is the ultimate squidbike and that its hard not to wheelie and folks are gonna mousetrap it alot. I seriously doubt they reinforced the frame for other reasons. But who knows.

meacham, it was.. but what else is there to do on a rainy day?

anyone: I am still lookin for the web addy for the joint that makes the brakes to drop a 1k in a 750 frame.



nope the guy that I gave the engine to is scared to do the swap but thanks for all the help fellaz
