Hey Bterry08 and myself threw together a pretty neat little rear brake kit today, all you need is:
Brake lever (bmx), cable, Adjuster nut, cable stop, and piece of metal plate
here are the pics, the only stipulation is that if you have really wide tires it may rub???

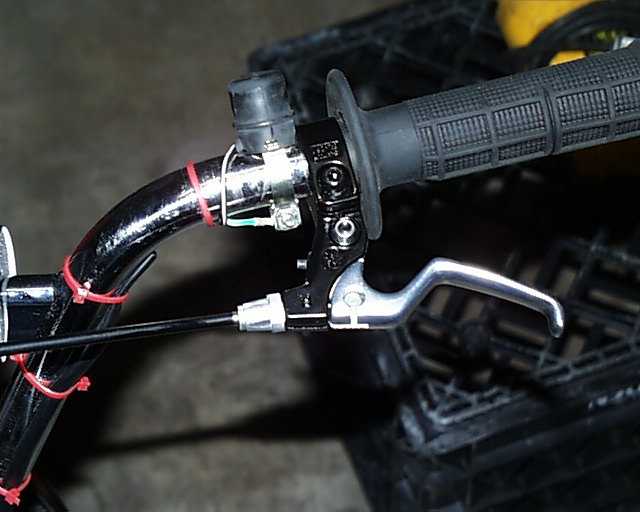

1. pretty self explanatory, its the bmx lever on the handlebar

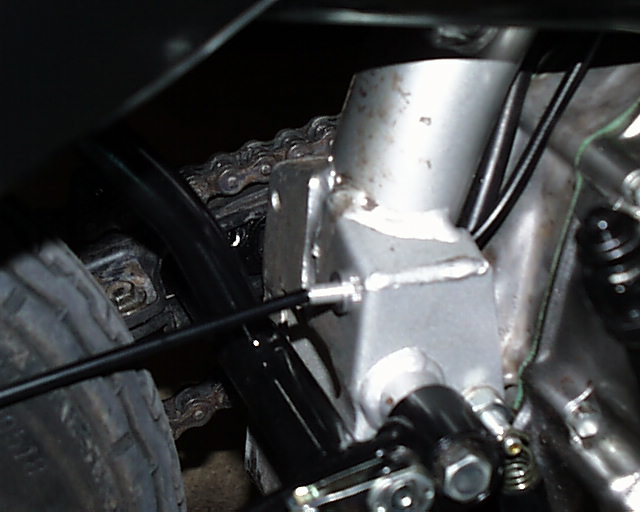

2. Now route the cable through the hole in the frame, this is the trickiest part, my suggestion is to run the cable through the adjuster nut, then run the bare cable through the hole..



also, run the nut part on the backside to secure the adjuster

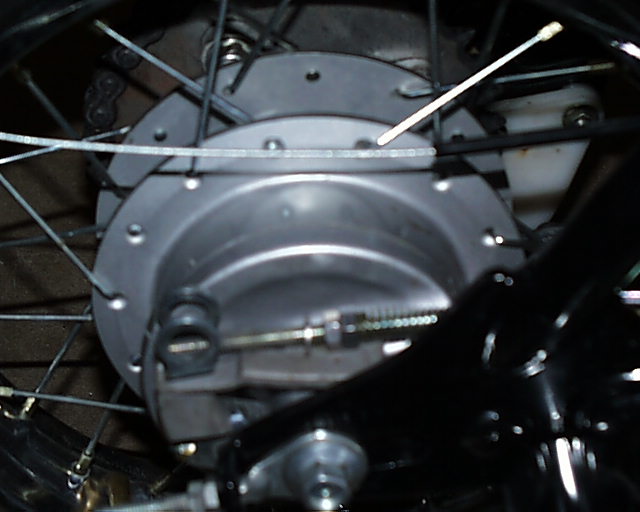

next, drill a hole to fit on the rod that runs through the swingarm and a small hole that the cable will fit through, then double nut on both sides, you will also need a spring (smaller than original to run from the plate to the rear brake link adjuster thingy....also, the part of the cable that you cut off to fit (casing) put that back over the cable itself and it will serve as somewhat of a rub protector just incase your tire happens to ever touch it...



also, put the stopper on the backside of the cable....

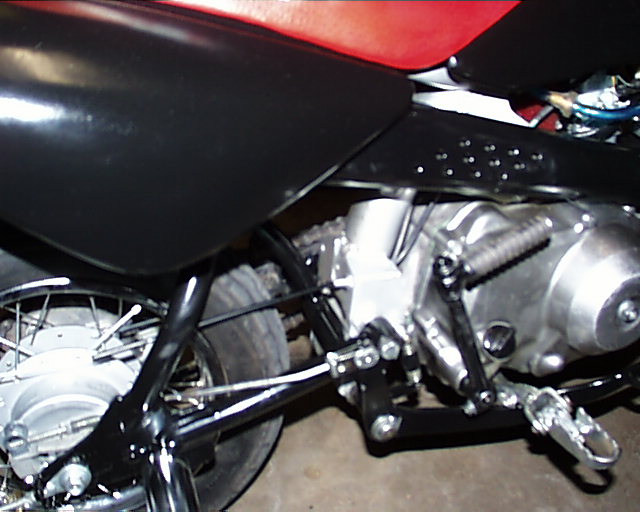

here's one last pic in the middle of assembly, but you're done....

the whole project cost about $19, but if you can get the parts cheaper you may be able to get it down some...



also, the hole in the frame is already there, there's no drilling...



RedR1 thank you! this is xactly wut im looking for



Well, that's pretty confusing, but I think I could figure it out. How do you account for extra slack in the brake cable (if there is any)? That's actually really neat. Thanks for the idea man!



been running something like that for the last few weeks, but I just wrapped the cable around the nut on the rear brake and put a pinch bolt/nut on the cable to hold it there. Works great, I can even lock up the rear with the handbrake



just find a stop nut to hold it behind the plate, it will hold and you can put it wherever on the cable to adjust it, also the slack isn't that great, just have someone sit on the bike whenever you adjust the stop nut.......



good stuff, thanks for the write-up.
B



glad you guys like it, it's a cheap alternative to the fast 50's 100dollar kit, and you retain the foot brake



what do you need a handbrake for on a fiddy???



wheelies on pegs, highchairs etc....



Word......i sent you the lout for the cable today, thanks again bro, let me know when you come to the D, an bring the fiddy...lol

lata,

Buzzman



get 1 an you'll see why



You only need a handbrake if you can't ride..... lol



be carful when you go flying into a corner and you wack the rear break with your foot and your left hand gets crushed by the rear brake lever
plus what are you going to do if you put a clutch on there man



Nice step by step on there bro.



I've had my setup for about 2 weeks now and I ride almost everyday... never had this problem
