kleen air on my 636-good idea! - Page 25

nos86 · 07-16-2009, 03:15 PM

i did it on ny 04 636 and it's awesome. No more white smoke coming out of the exhaust. Also the throttle is not as twitchy... i recommend it

This ad is not displayed to registered members.
Register your free account today and become a member on StuntLife !

taa84 · 07-28-2009, 07:59 AM

i have a clean air mod on mine but mine still smokes like crazy sometime i cant fig out what it is anyone have this prob to

PancakePete · 07-28-2009, 09:35 AM

Subscribe! Preeshiate it fellas

old man roger · 07-28-2009, 12:01 PM

Quote:

Originally Posted by taa84

i have a clean air mod on mine but mine still smokes like crazy sometime i cant fig out what it is anyone have this prob to

the clean air mod reroutes the crank case vent tube to your exhaust port so if your exhaust smokes it means that oil would have been in your air box had you not done the mod ...

i fill my oil to just below the top of the site glass , if you over fill it too much you will get some smoke

taa84 · 07-28-2009, 12:50 PM

Quote:

Originally Posted by old man roger

the clean air mod reroutes the crank case vent tube to your exhaust port so if your exhaust smokes it means that oil would have been in your air box had you not done the mod ...

i fill my oil to just below the top of the site glass , if you over fill it too much you will get some smoke

all the ports are blocked off on the air box and it is rerouted i fill it up right to the top line in the glass. it dont do it all the time just mainly when my friend gets on it he cant ride slow wheelies he just rides the gear out it. it only does it to me when i leave on it side for like a min or so.

old man roger · 07-28-2009, 01:01 PM

Quote:

Originally Posted by taa84

all the ports are blocked off on the air box and it is rerouted i fill it up right to the top line in the glass. it dont do it all the time just mainly when my friend gets on it he cant ride slow wheelies he just rides the gear out it. it only does it to me when i leave on it side for like a min or so.

ya so it's doing it's job , stop letting your friend pow pow your bike ....lol

Lance888 · 08-07-2009, 12:23 AM

...my 04 636 does the same thing. i have the ports blocked off and still smokes white like crazy

lky · 08-21-2009, 07:41 PM

ok ok i have read this thread about 8 times lol i must still be a dumb ass

THERE ARE A FEW THINGS THAT ARE WIGGIN ME OUT.....

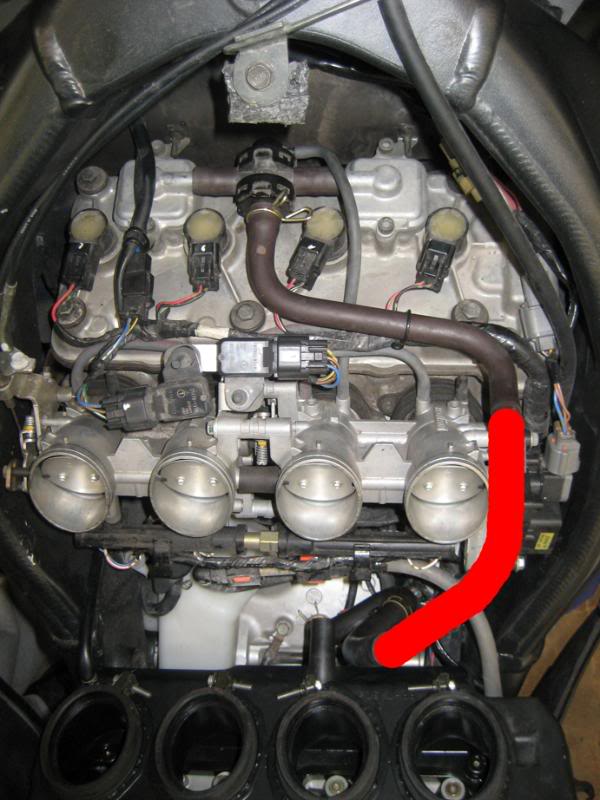

ok i know i have to join these 2 hoses

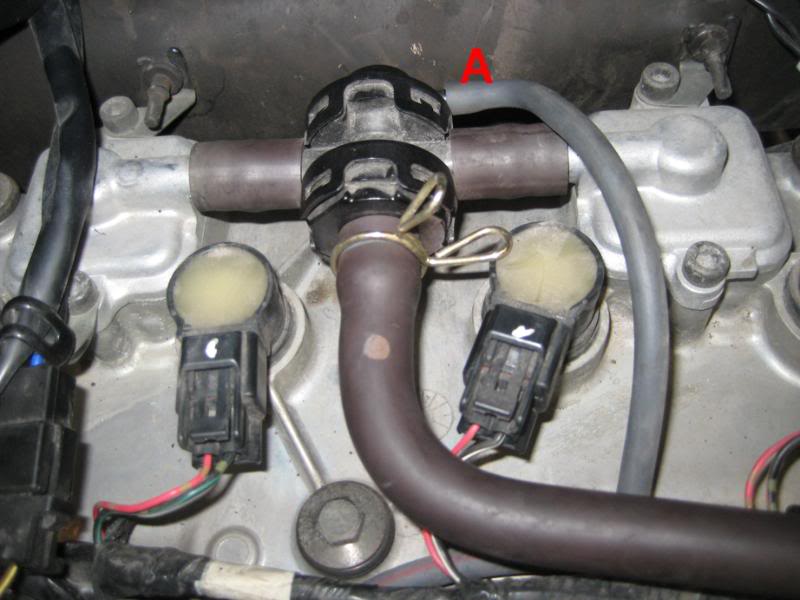

But whats the deal with this T piece can use the standard one and still run the vacume line to the sensor or do i have to block hose (A) off? if so WHY? what does hose (A) do?

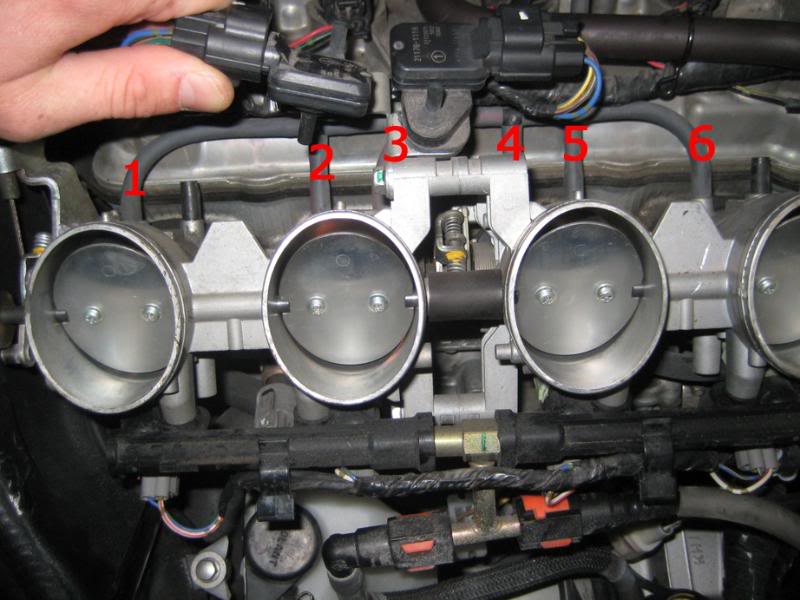

Or do i have to take off all the vacume lines and cap them all at the throttle bodies.

old man roger · 08-22-2009, 02:41 AM

just take off hose A and stick a screw in it , it operates the pair valve but when you unplug it then the valve just stays open and acts just like a t fitting...

and dont forget to plug the holes left in your airbox

lky · 08-22-2009, 08:20 PM

your the man OMR.... thanks heaps im on it tonight....

KLEEN AIR ALL THE WAY

Bklynlod · 09-12-2009, 08:20 PM

Why is there different instructions on this forum?

http://www.kawiforums.com/2003-2004-...ction-mod.html

Which should I do?

navajowalks · 09-19-2009, 12:38 PM

Quote:

Originally Posted by Bklynlod

Why is there different instructions on this forum?

http://www.kawiforums.com/2003-2004-...ction-mod.html

Which should I do?

its the way people do it for the track.... read this thread from the beginning. and read what OMR post, that should explain everything you need to know...

Bklynlod · 09-19-2009, 12:48 PM

Quote:

Originally Posted by navajowalks

its the way people do it for the track.... read this thread from the beginning. and read what OMR post, that should explain everything you need to know...

Thanks bro.

da Liks · 12-01-2009, 01:41 PM

so, for the 05 636 no T valve but a straight connection between the two big tubes, cap off the small vacuum line and the airbox? sounds easy..

old man roger · 12-02-2009, 03:11 AM

Quote:

Originally Posted by da Liks

so, for the 05 636 no T valve but a straight connection between the two big tubes, cap off the small vacuum line and the airbox? sounds easy..

yes , most bikes are the same except some have a vacuum line operating the pair valve and some are electric , the ones that are electric just unplug them and the ones that are vacuum operated just unplug and block off the vacuum line

da Liks · 12-02-2009, 01:05 PM

thanks!

da Liks · 12-03-2009, 01:46 AM

btw, can i use the stock tvalve? like disable it or something? it s gonna be a bitch finding a plastic T piece over here in that size..

old man roger · 12-03-2009, 03:07 AM

Quote:

Originally Posted by da Liks

btw, can i use the stock tvalve? like disable it or something? it s gonna be a bitch finding a plastic T piece over here in that size..

you didnt read any of this thread did you

yes yo can use the stock pair valve , when you unplug it it will stay open and act just like a t fitting

da Liks · 12-03-2009, 03:42 PM

i read some of it haha, just didnt fully understand everything. Nice, so if my t fitting doesnt fit i'm still covered..

Criscone24 · 01-30-2010, 12:29 PM

im going to do this, seems like a good idea. 03 636, i thought you needed to route it to the exhaust? Basically the concept is dont let ANY hoses/lines touch the airbox correct?

EDIT: Like on my car the PCV valve i remove the line leaving the air box and plug it on the box. Then the open port on the PCV i just run a tube off of that into either a catch can or just straight down to the ground. Same concept?
