F4i clutch arm mod... weld-less version. - Page 6

da Liks · 07-15-2008, 11:10 AM

lotta dutch folks did it this way! nice KJ!

This ad is not displayed to registered members.
Register your free account today and become a member on StuntLife !

Incantation · 10-09-2008, 02:14 PM

nice post thanks

joe98 · 10-09-2008, 04:18 PM

i did this on my 636 and i wasnt worth the effort. plus now my clutch makes this clicking noise in the motor. it pulled as easy with the stock length as it does now and i liengthened it 3/4 of an inch

SEAN_PARRISH10 · 12-01-2008, 03:37 PM

Did Mine This Weekend... Shit Is Butter . And All I Used Was A Durable D/b Clutch ... Not An Easy Pull.... +1 For Kj And =1 For Roger.

old man roger · 12-01-2008, 03:39 PM

Quote:

Originally Posted by joe98

i did this on my 636 and i wasnt worth the effort. plus now my clutch makes this clicking noise in the motor. it pulled as easy with the stock length as it does now and i liengthened it 3/4 of an inch

you have your cable adjusted too tight

kj · 12-01-2008, 05:35 PM

Quote:

Originally Posted by old man roger

you have your cable adjusted too tight

Yup... that or the cable is rubbing the housing down the bottom because of the angle.

On the f4i there is a bracket that needs to be bent outward or the cable will have too much angle and be hard to pull.

*trix* · 01-26-2009, 10:53 AM

bump for a great thread. I have an ezpull and I will be doing this to my 636 tonight

JonBlaze · 01-26-2009, 09:31 PM

good shit

bulgarianMike · 01-27-2009, 01:05 AM

now i just got to figure out how to do this shit on my k6

seldon929rr · 01-27-2009, 02:20 PM

looks well worth the 6 bucks

mroneeyedboh · 01-27-2009, 06:56 PM

Anyone do this on a 600rr yet? I know its a bit tighter and limits the length. just wondering on how far/long you guys went.

UnLicenced_NZ · 01-27-2009, 07:10 PM

Best post I've seen all day, gonna do it tonight!

bulgarianMike · 01-27-2009, 07:17 PM

Quote:

Originally Posted by mroneeyedboh

Anyone do this on a 600rr yet? I know its a bit tighter and limits the length. just wondering on how far/long you guys went.

http://www.stuntusa.com/forums/showthread.php?t=35219

01-27-2009, 07:23 PM

So you gotta drop the motor to do this?

NME · 01-27-2009, 08:08 PM

Quote:

Originally Posted by kj

So... I can't weld and my guy lives a lil far to haul my engine down to him while i have it apart... so I figured out a way to do it the ghetto way.

Grind out the rivet that holds the swivel/cable connector on the end of the stock arm and drill one more hole about half way down the arm.

Get a piece of flat steel and cut it to size... I did about 5/8 - 3/4 extra length...

Mark and drill out the two matching holes to bolt up to the arm... then a 3rd hole on the end for the cable connector.

I used 6mm grade 12.9 bolts and made the holes just a tad small so the bolts actually screwed them selves into the arm... the nut on the bottom is just for safe measure.

That's how my boy did his and it works just fine...don't sweat it!

JMZ · 01-27-2009, 09:03 PM

Quote:

Originally Posted by Kelm

So you gotta drop the motor to do this?

No

tracetidwell · 01-27-2009, 09:30 PM

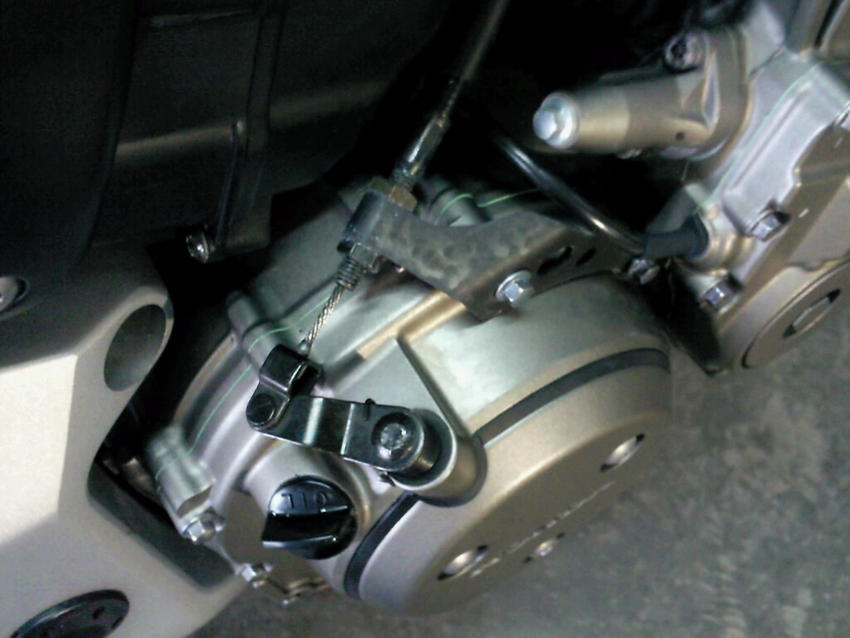

This is the welded version on my 919 I decided to do it today just testing out my new welding hood.

douggiefresh · 01-28-2009, 05:51 PM

this shit is butter works primoe on my 636 with a moose ez-pull

JMZ · 01-28-2009, 07:09 PM

Does this mod have to be 10mm, or would anything past the stock hole help?

EmoJonJon · 01-29-2009, 04:37 AM

i dont understand why u can only weld 1/2 inch more on the f4i but if you bolt it on you can get another 1/4inch and make it 3/4 longer?
